CJC BG15/12 Replacement Filter Insert for Hydraulic and Gear Oil Cleaning

Name: CJC BG15/12 Replacement Filter Insert for Hydraulic and Gear Oil Cleaning
Brand: MeiTong Filtration
SKU: 299

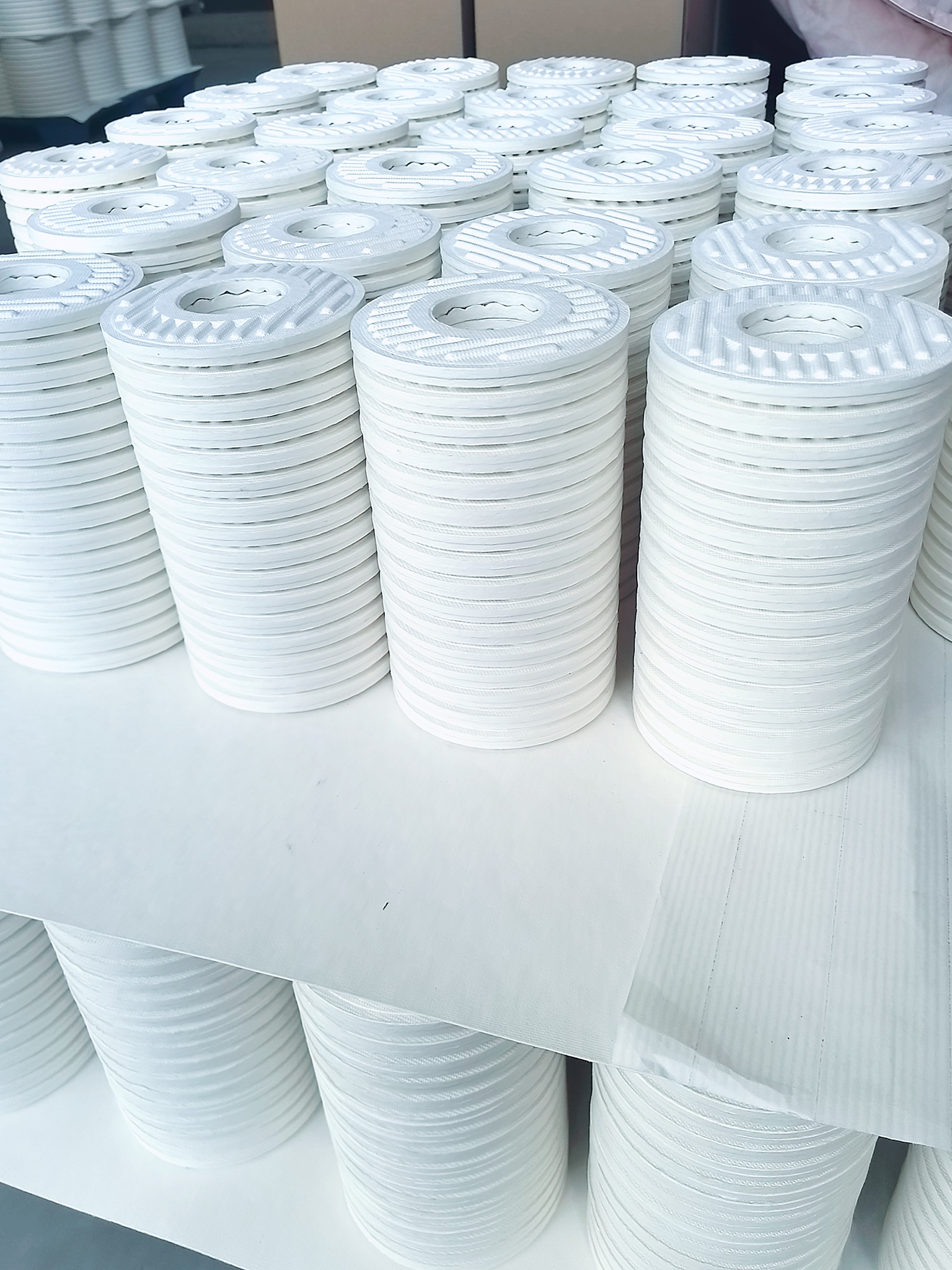

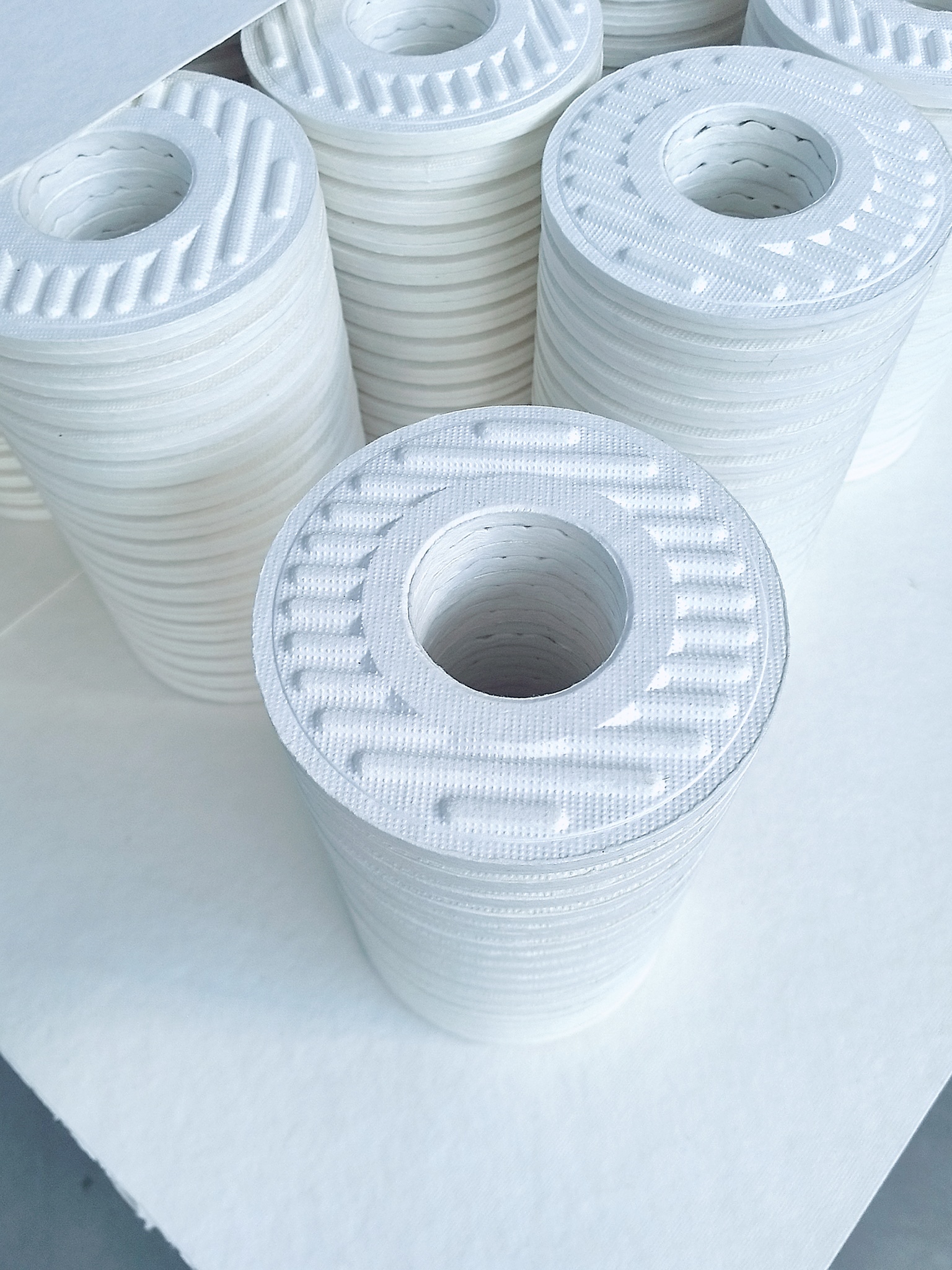

CJC BG15/12 Replacement Filter Insert for Hydraulic and Gear Oil Cleaning - thumbnail

CJC BG15/12 Replacement Filter Insert for Hydraulic and Gear Oil Cleaning

Find BG15/12 replacement filter inserts for compatible offline oil systems. Explore gear oil, hydraulic fluid, turbine oil and metalworking oil applications.

OD 150mm inch

Height 120mm inch

End caps

Filter layer Wood cellulose and cotton linters

Filtration rate 0.8 μm; 50% retention of solid particles larger than 0.8 μm per pass; 3 μm; 98.7% retention of solid particles larger than 3 μm per pass μm

Working temperature

Skeleton

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

The BG15/12 replacement filter insert is a compact-format option for compatible offline oil filtration equipment. Its original reference dimensions of 120 mm diameter and 250 mm height distinguish it from larger filter inserts used in industrial oil maintenance.

Typical applications include gearbox oil cleaning, hydraulic fluid filtration, turbine lubrication, and the treatment of honing and rolling oils. Selection should account for the oil type, operating conditions, and the replacement element’s verified contamination holding capacity.

For buyers comparing BG15/12 oil filter replacements or searching by PA5601355, the model offers a clear reference for maintenance procurement across a range of mineral and synthetic oil applications.

Application

Gearbox lubrication oil cleaning.

Hydraulic fluid filtration.

General industrial lubricating oil maintenance.

Turbine lubrication oil filtration.

Honing oil cleaning for machining operations.

Rolling oil filtration for metal processing.

Compatible offline filtration circuits using mineral or synthetic oils.

Compatible Filtration Systems

CJC HDU Fine Filter Systems

CJC Offline Oil Filtration Units

Industrial Hydraulic Oil Filtration Systems

Lubricating Oil Conditioning Systems

Specifications

Reference model	CJC BG 15/12
Filter category	Offline oil filter insert
Nominal outside diameter	150 mm
Nominal height	120 mm
Original media	Wood cellulose and cotton linters
Original construction	Bonded discs
Absolute filtration rating	3 μm; 98.7% retention of solid particles larger than 3 μm per pass
Nominal filtration rating	0.8 μm; 50% retention of solid particles larger than 0.8 μm per pass
Dirt holding capacity	1.5 L of evenly distributed solids
Degradation product retention	Approximately 1 kg
Water absorption potential	Up to 750 mL; stated as up to 50% of total contaminant holding capacity
Applicable oil bases	Mineral and synthetic
Original article number	PA5601355

If you are interested in this filter, please contact us to get the price.

Features

Natural Cellulose Depth Filtration :Bonded discs made from wood cellulose and cotton linters provide a large filtration area and effective contaminant retention.

Fine Particle Removal :Captures fine particles and wear debris to maintain oil cleanliness and protect equipment.

High Dirt Holding Capacity :Depth filtration structure provides high contaminant retention capacity for continuous offline oil filtration.

Water Absorption: Absorbs moisture from compatible mineral and synthetic oils, helping reduce water contamination.

Varnish & Sludge Removal: Retains oil oxidation by-products, resins, sludge, and varnish to support oil quality.

OEM Replacement Compatibility: Replacement for CJC BG 15/12(PA5601355), with customization available based on samples and technical specifications.

Model Number

CJC Filter Insert Model	OEM Reference Part Number
CJCBG 15/12	PA5601355
