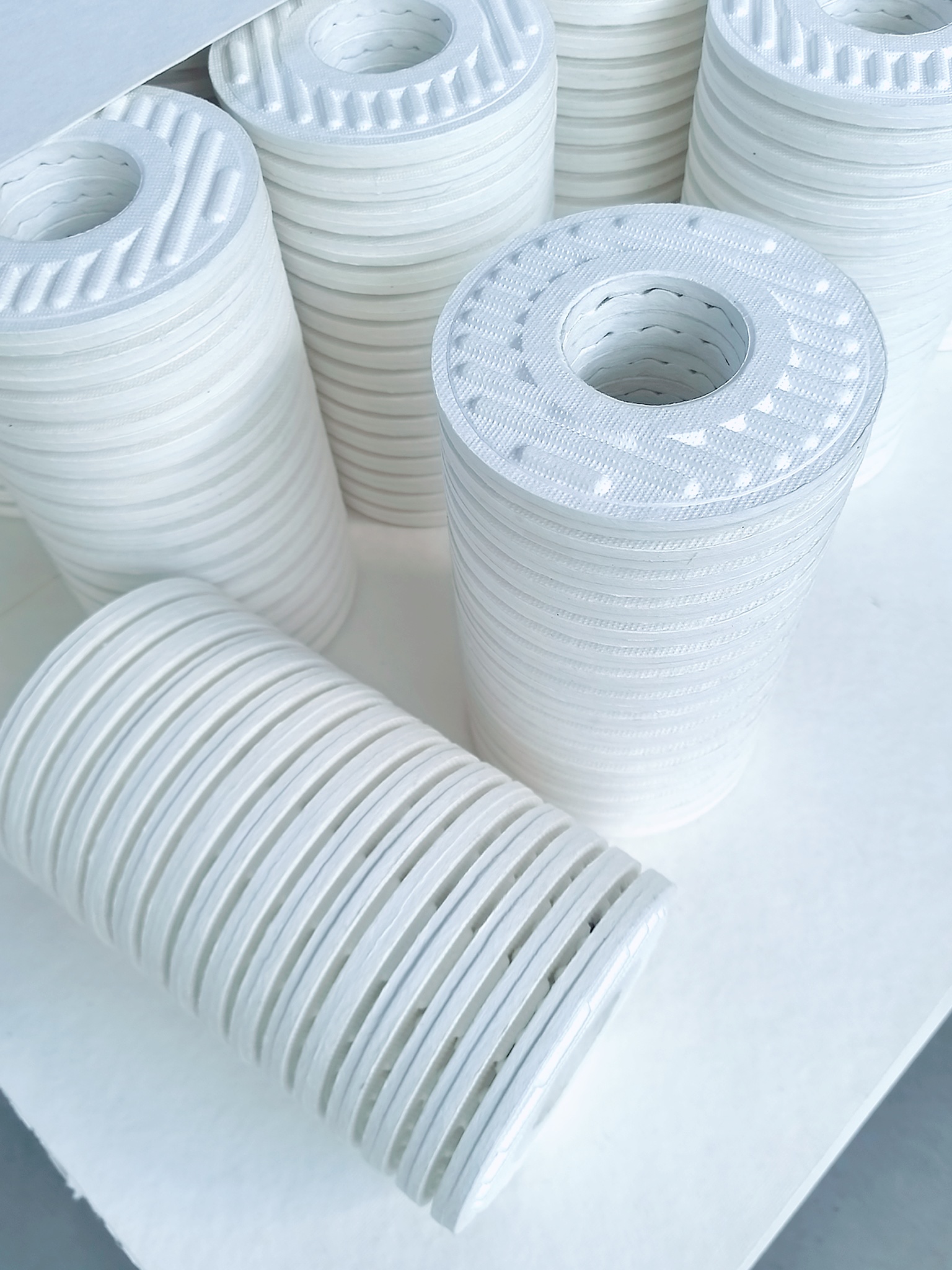

Replacement CJC Type B 15/25 Cellulose Depth Filter Inserts

Name: Replacement CJC Type B 15/25 Cellulose Depth Filter Inserts
Brand: MeiTong Filtration
SKU: 288

Replacement CJC Type B 15/25 Cellulose Depth Filter Inserts - thumbnail

Replacement CJC Type B 15/25 Cellulose Depth Filter Inserts

Replacement Filter Inserts for CJC B Series Offline Oil Filtration Systems

OD inch

Height inch

End caps

Filter layer

Filtration rate μm

Working temperature

Skeleton

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

Meitong Filtration supplies replacement CJC Type B cellulose depth filter inserts designed for offline filtration of hydraulic oils, lubricating oils, gear oils, and turbine oils.

Our replacement filter inserts are developed as alternatives to C.C.JENSEN CJC B Series filter elements used in CJC HDU fine filtration systems.

Featuring cellulose-based depth filtration media, these replacement filter inserts are designed to capture fine solid particles and help control water, varnish, sludge, and oil degradation products. They support improved oil cleanliness, reduced equipment wear, and more effective industrial oil maintenance.

Meitong offers replacement options for CJC B 15/12, B 15/25, B 15/50, B 27/27, and B 2×27/27 filter inserts.

Application

Hydraulic Oil Filtration

Industrial Lubricating Oil Filtration

Gear Oil Filtration

Bearing Lubricating Oil Filtration

Turbine Mineral Oil Filtration

Compatible Synthetic Oil Filtration

Offline Oil Filtration Systems

Industrial Oil Purification and Maintenance

Compatible Filtration Systems

CJC HDU Fine Filter Systems

CJC Offline Oil Filtration Units

Industrial Hydraulic Oil Filtration Systems

Lubricating Oil Conditioning Systems

Why Choose Meitong Replacement CJC Filter Inserts?

Meitong Filtration specializes in industrial replacement filter elements for hydraulic, lubrication, oil and gas, and process filtration applications.

We support customers seeking alternative filter elements through:

Replacement filter development based on OEM part numbers, drawings, and samples.

Filtration media selection according to operating requirements.

Dimensional and installation compatibility evaluation.

Customized replacement filter manufacturing for industrial applications.

Technical consultation and export supply for distributors and industrial end users.

Specifications

Brand / Manufacturer	MeiTong Filtration
OEM Model Reference	B 15/25 Equivalent
OEM Part Number	Equivalent to PA5601321
Filter Media Type	100% Natural Bonded Cellulose
Filtration Efficiency	> 98.7% (Fine Depth Filtration)
Solid Contamination Capacity	4.0 kg
Varnish / Sludge Capacity	4.0 kg
Water Removal Capacity	1.5 Liters
Recommended Fluid Types	Low-Viscosity or Warm Mineral / Synthetic Oils
Compatible Equipment	CJC HDU Series Offline Filters
Filtration Ability	3micron absolute (equiv. to 0.8μm nominal) 98.7% of all solid particles >3μm and approximately 50% of all particles >0.8 μm are retained in each pass.

If you are interested in this filter, please contact us to get the price.

Features

Natural Cellulose Depth Filtration

Features a disk structure compressed from 100% natural cellulose fibers, providing an ultra-large filtration area to achieve full-depth contamination retention.

Can be custom-manufactured to meet specific dimensional and filtration requirements.

High Dirt Holding Capacity

l Contaminants are deeply retained within the filter media rather than just remaining on the surface.

l Highly suitable for offline (bypass) circulating filtration systems, supporting continuous and efficient oil purification.

Fine Particle Removal

l Effectively captures dust, metallic wear particles, and other impurities to prevent premature component wear.

l Significantly improves oil cleanliness and comprehensively protects hydraulic and lubrication systems.

Superior Water Absorption

l Effectively absorbs free, emulsified, and dissolved water from mineral and synthetic oils (actual performance depends on oil characteristics and operating conditions).

Varnish and Sludge Removal

Effectively intercepts oil oxidation by-products, resins, sludge, and varnish-forming substances through absorption and adsorption.

Maintains oil quality and ensures stable equipment operation.

Comprehensive Oil Maintenance and Equipment Protection

Simultaneously controls solid particles, moisture, and oil degradation products to support proactive preventive maintenance and significantly reduce equipment failures caused by contamination.

Model Number

CJC Filter Insert Model	OEM Reference Part Number
CJC B 15/12	PA5601324
CJC B 15/25	PA5601321
CJC B 15/50	PA5601317
CJC B 27/27	PA5601301
CJC B 2×27/27	PA5601304
