Replacement CJC A 27/27 PA5600317 Cellulose Depth Filter Insert

Name: Replacement CJC A 27/27 PA5600317 Cellulose Depth Filter Insert
Brand: MeiTong Filtration
SKU: 286

Replacement CJC A 27/27 PA5600317 Cellulose Depth Filter Insert - thumbnail

Replacement CJC A 27/27 PA5600317 Cellulose Depth Filter Insert

Replacement CJC A 27/27 Oil Filter Insert (PA5600317 Equivalent)

OD 27 cm inch

Height 27 cm inch

End caps

Filter layer

Filtration rate μm

Working temperature

Skeleton

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

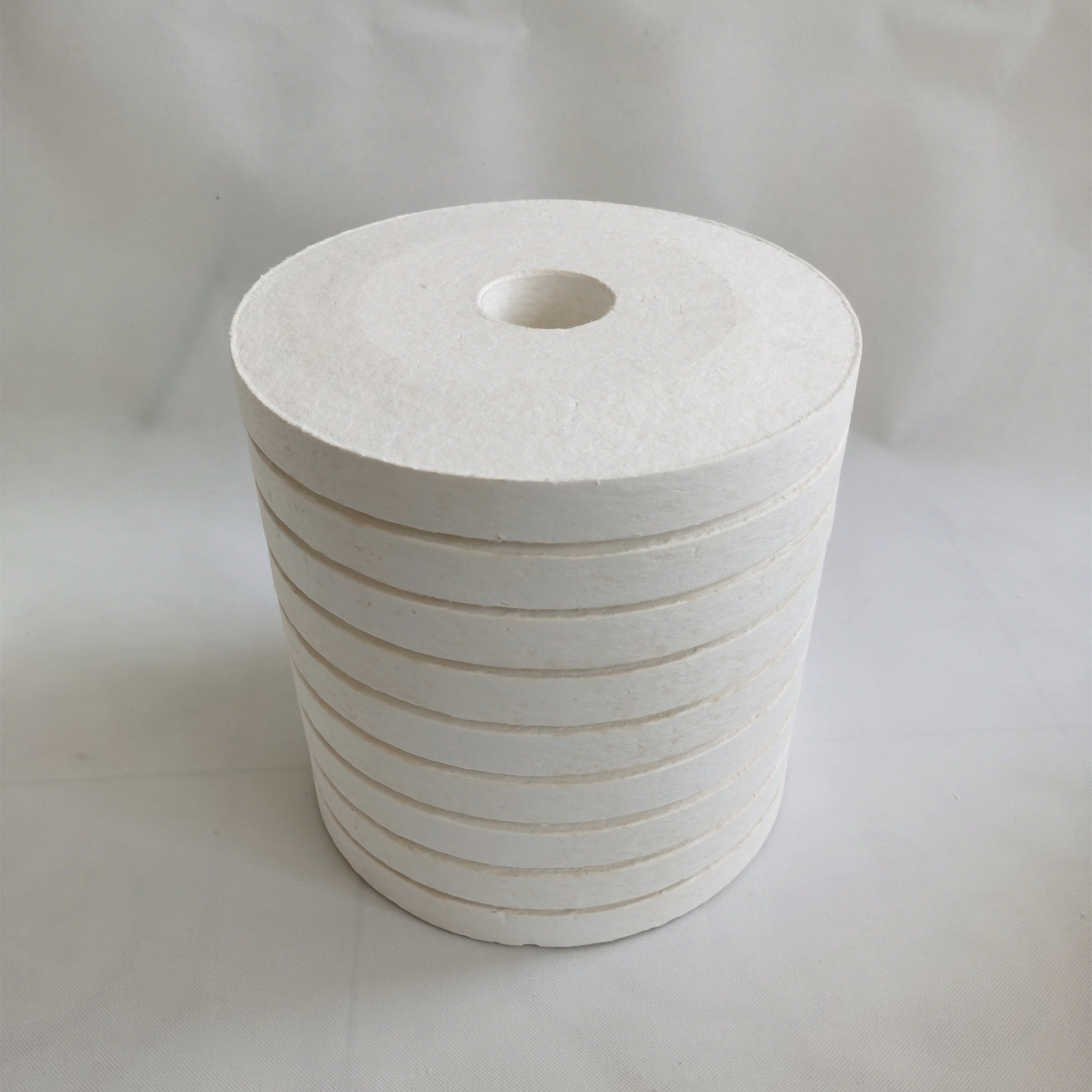

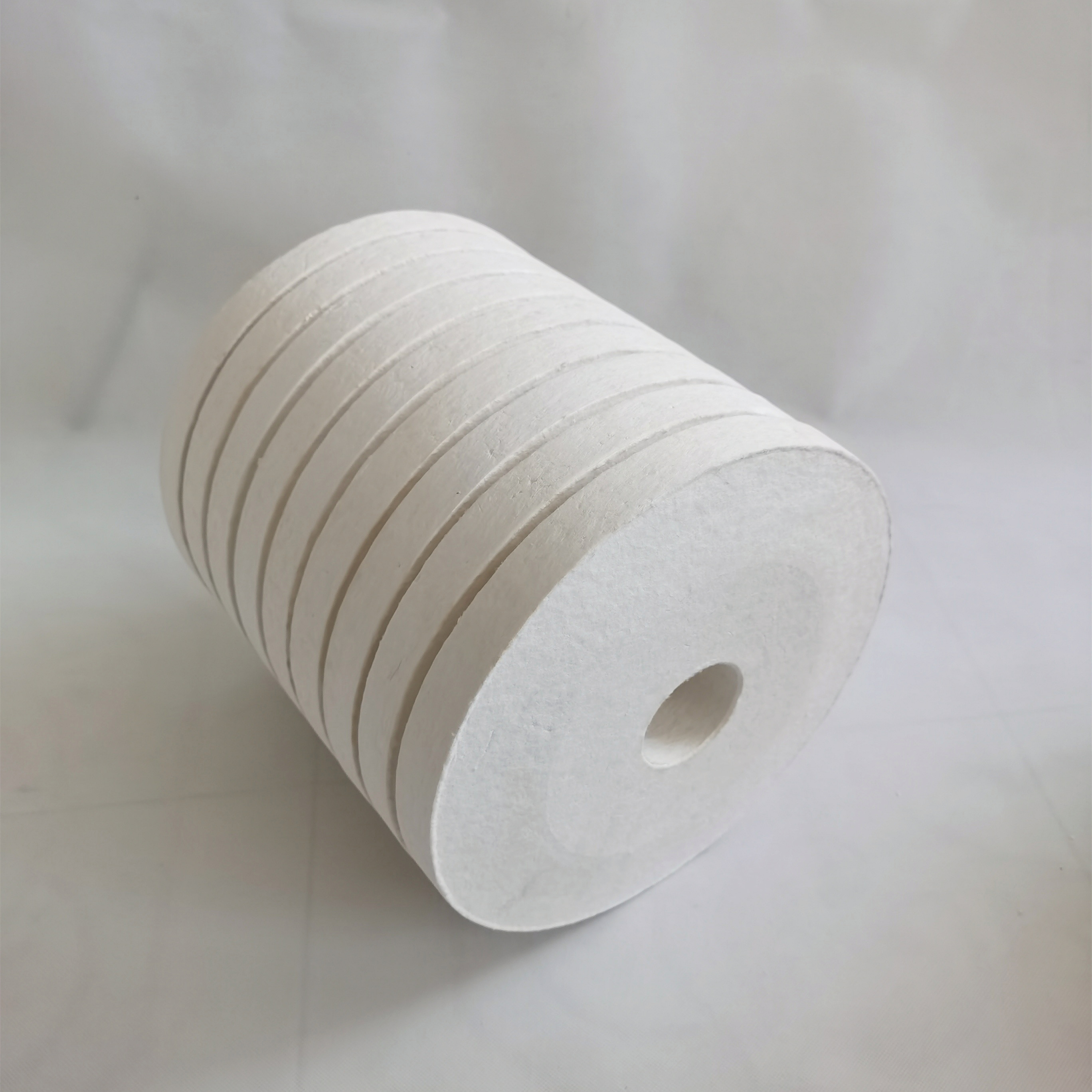

The MeiTong A 27/27 Replacement Filter Insert is a direct-interchange, heavy-duty depth filtration cartridge designed for offline oil maintenance in small hydraulic systems, engine lube loops, and generator sets. Engineered with 100% eco-friendly bonded natural cellulose discs, this insert offers exceptional Dirt Holding Capacity (DHC) while providing a low total cost of operation per kilogram of contamination removed.

Designed for low-viscosity or elevated-temperature oil applications, the A 27/27 filter element operates within CJC HDU series offline fine filtration units to clean oil continuously—preventing premature component wear, fluid degradation, and system downtime.

Application

Designed specifically for bypass / offline loop filtration in industrial and marine applications:

Small Hydraulic Power Units (HPUs)

Small Diesel Engines & Generator Sets (Gensets)

Compact Lubrication & Bearing Systems

Offline Oil Conditioning Units (CJC® HDU Series)

Why Choose Meitong Replacement CJC Filter Inserts?

Meitong Filtration specializes in industrial replacement filter elements for hydraulic, lubrication, oil and gas, and process filtration applications.

We support customers seeking alternative filter elements through:

Replacement filter development based on OEM part numbers, drawings, and samples.

Filtration media selection according to operating requirements.

Dimensional and installation compatibility evaluation.

Customized replacement filter manufacturing for industrial applications.

Technical consultation and export supply for distributors and industrial end users.

Specifications

Brand / Manufacturer	MeiTong Filtration
OEM Model Reference	A 27/27 Equivalent
OEM Part Number	Equivalent to PA5600317
Filter Media Type	100% Natural Bonded Cellulose
Filtration Efficiency	> 98.7% (Fine Depth Filtration)
Solid Contamination Capacity	4.0 kg
Varnish / Sludge Capacity	4.0 kg
Water Removal Capacity	1.5 Liters
Recommended Fluid Types	Low-Viscosity or Warm Mineral / Synthetic Oils
Compatible Equipment	CJC HDU Series Offline Filters
Filtration Ability	3micron absolute (equiv. to 0.8μm nominal) 98.7% of all solid particles >3μm and approximately 50% of all particles >0.8 μm are retained in each pass.

If you are interested in this filter, please contact us to get the price.

Features

4-in-1 Contamination Removal: Simultaneously targets and traps four primary causes of oil breakdown in a single pass.

Solid Particles: Removes abrasive silt and wear debris down to fine micron levels.

Water Retention: Absorbs up to 1.5 Liters of dissolved, emulsified, and free water.

Varnish & Oxidation Products: Captures soft contaminants, sludge, resins, and varnish via deep absorption and surface adsorption.

Acidity Control: Neutralizes harmful acidic compounds (TAN control) to slow oil oxidation.

Pure Eco-Cellulose Construction: Manufactured with 100% natural, eco-friendly cellulose fibers. 100% Free from plastics, metals, and chemical additives.

High Dirt Holding Capacity: Holds up to 4 kg of solid debris and 4 kg of varnish/sludge, significantly outperforming traditional pleated glass-fiber elements in continuous offline service.

Direct OEM Fit: Fully compatible replacement for C.C.JENSEN (CJC®) Part Number PA5600317 / A 27/27.

Model Number

A27/27

PA5600317
