Replacement CJC A 15/25 Cellulose Depth Filter Insert for Hydraulic and Lubricating Oil Filtration

Name: Replacement CJC A 15/25 Cellulose Depth Filter Insert for Hydraulic and Lubricating Oil Filtration
Brand: MeiTong Filtration
SKU: 285

Replacement CJC A 15/25 Cellulose Depth Filter Insert for Hydraulic and Lubricating Oil Filtration - thumbnail

Replacement CJC A 15/25 Cellulose Depth Filter Insert for Hydraulic and Lubricating Oil Filtration

Replacement CJC A 15/25 Filter Insert | PA5600322

OD Φ150*Φ55* inch

Height H250 inch

End caps

Filter layer Cellulose-Based Depth Media

Filtration rate μm

Working temperature

Skeleton

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

The Meitong Replacement CJC A 15/25 Filter Insert is designed as an alternative filtration element for C.C.JENSEN CJC A-type offline oil filtration systems.

The CJC A 15/25 is a cellulose depth filter insert developed for the maintenance of small hydraulic systems, generator sets, and industrial lubricating oil systems. Its depth filtration design combines fine particle removal with the retention of water, oil oxidation by-products, varnish, and acidic contaminants.

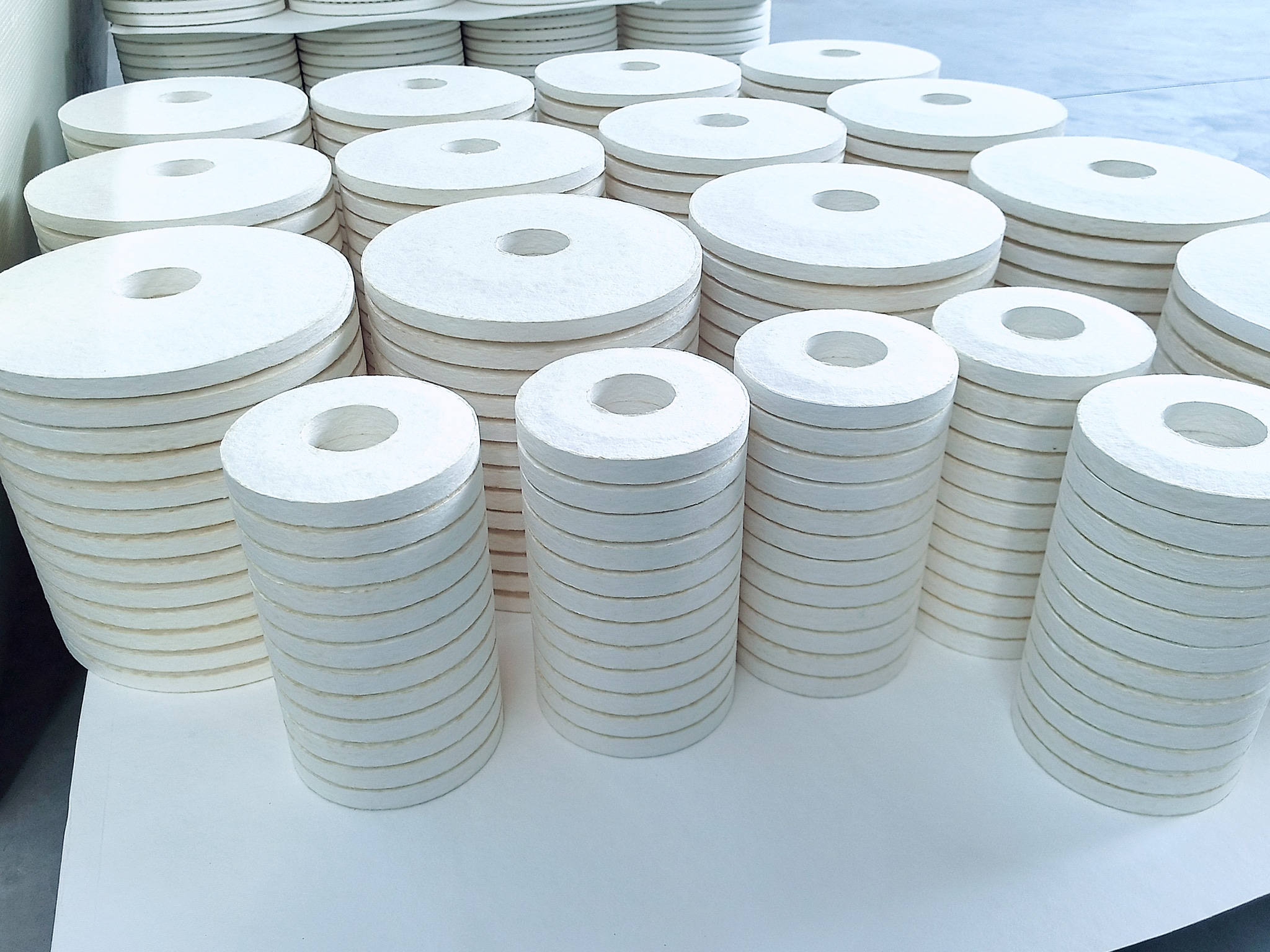

Unlike conventional pleated filter cartridges, CJC A-type filter inserts utilize bonded cellulose discs to provide a large filtration area and high contaminant retention capacity.

Meitong Filtration offers replacement filter inserts developed according to original equipment references and customer requirements, with particular attention to dimensional compatibility, filtration media selection, and operating conditions.

How It Works: Cellulose Depth Filtration Technology

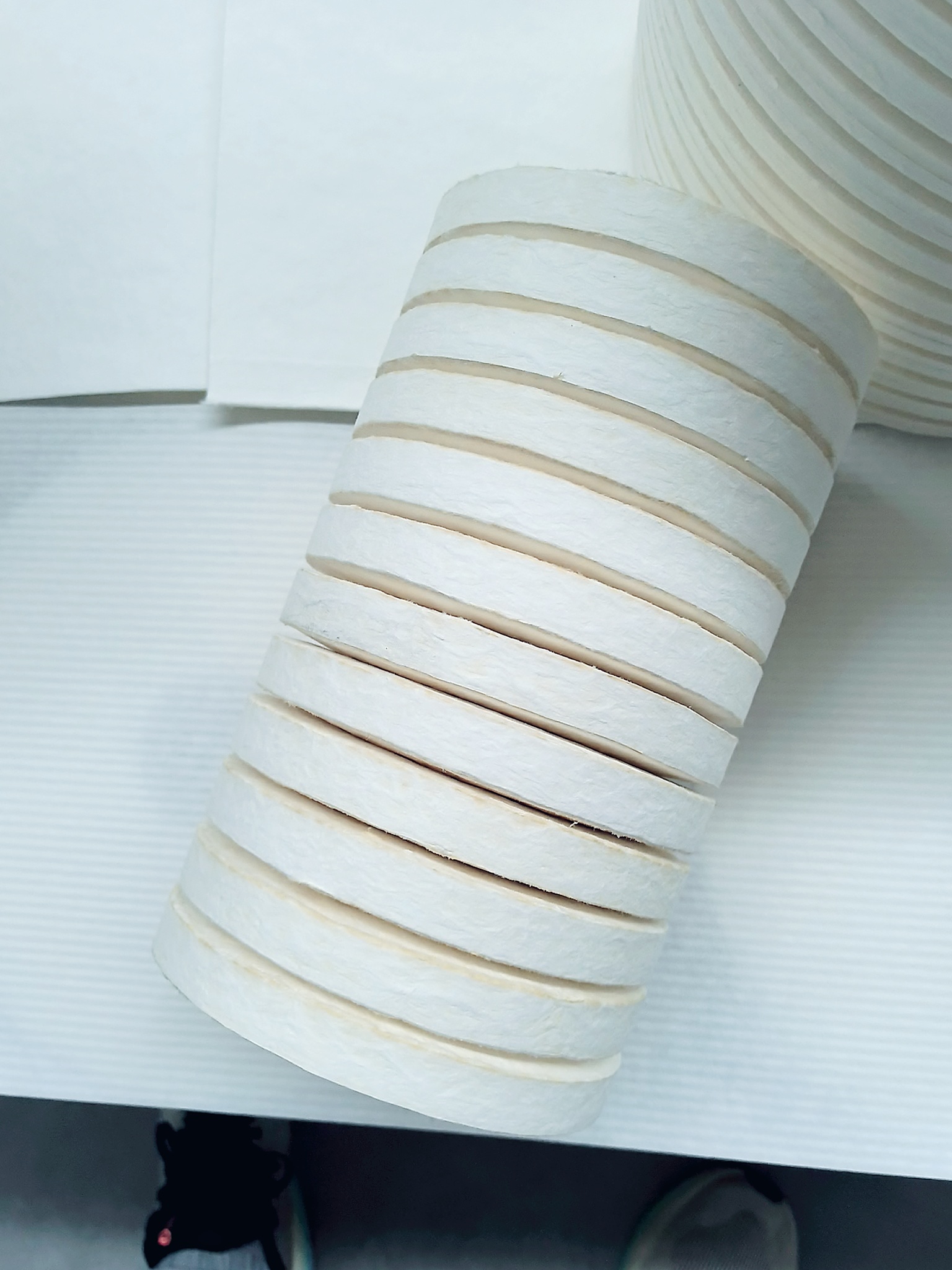

The CJC A 15/25 filter insert uses bonded cellulose discs to capture contaminants throughout the depth of the filter media.

As oil flows through the cellulose layers, fine particles are trapped, while water, varnish, and oil oxidation products are retained through absorption and adsorption.

This depth filtration mechanism provides high dirt holding capacity and helps maintain oil cleanliness and extend oil service life.

Application

Small Hydraulic Systems: Offline filtration of hydraulic oils to control fine particles and water contamination.

Generator Sets: Lubricating oil maintenance for small industrial engines and generator equipment.

Industrial Lubrication Systems: Oil cleanliness control in machinery lubrication circuits.

Offline Oil Filtration Units: Replacement filter inserts for compatible CJC HDU series filtration equipment.

Why Choose Meitong Replacement CJC Filter Inserts?

Meitong Filtration specializes in industrial replacement filter elements for hydraulic, lubrication, oil and gas, and process filtration applications.

We support customers seeking alternative filter elements through:

Replacement filter development based on OEM part numbers, drawings, and samples.

Filtration media selection according to operating requirements.

Dimensional and installation compatibility evaluation.

Customized replacement filter manufacturing for industrial applications.

Technical consultation and export supply for distributors and industrial end users.

Specifications

Reference Model	A 15/25
OEM Reference Number	PA5600322
Size	Φ150Φ55H250
Product Type	Offline Depth Filter Insert
Filter material	Cellulose-Based Depth Media
Reference Construction	Bonded Cellulose Discs
Solid Dirt Holding Capacity	2 kg
Water Holding Capacity	0.75 L
Varnish Holding Capacity	1 kg
Filtration Application	Hydraulic Oil / Lubricating Oil
Recommended Operating Conditions	Low-Viscosity or Warm Oil

If you are interested in this filter, please contact us to get the price.

Features

1. Cellulose Depth Filtration:Made with bonded cellulose discs, the CJC A 15/25 filter insert provides fine filtration and high contaminant holding capacity.

2. Fine Particle Removal: Effectively removes fine particles, dust, and wear debris to maintain oil cleanliness and protect equipment.

3. Water Absorption: Cellulose filter media absorbs dissolved, emulsified, and free water. The original CJC A 15/25 has a water holding capacity of 0.75 L.

4. Varnish and Oxidation Removal: Helps remove oil oxidation products, sludge, varnish, and acidic contaminants, reducing oil degradation.

5. High Dirt Holding Capacity: The original CJC A 15/25 offers a solid dirt holding capacity of 2 kg and a varnish holding capacity of 1 kg.

6. Offline Oil Filtration :Designed for CJC HDU offline filtration systems, particularly suitable for low-viscosity or warm hydraulic and lubricating oils.

Model Number

A15/25

PA5600322
