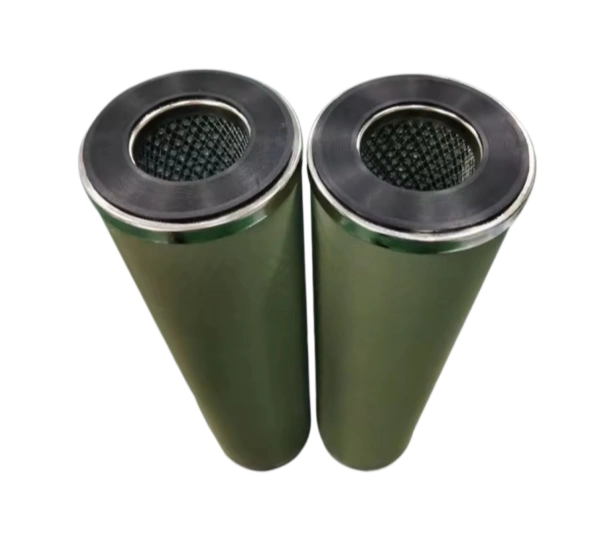

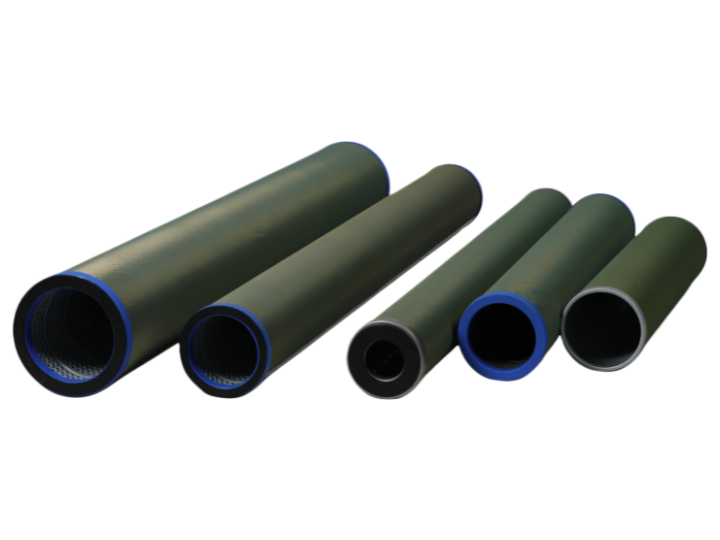

Replacement Velcon separator Filter Element Model SO-424V Aviation and Industrial

OD 6 inch

Height 24,30,36 etc inch

End caps Stainless Steel

Filter layer Teflon Coated Screen, Synthetic or Pleated Paper Media

Filtration rate 0.5–25 μm

Working temperature 250 °F（121.1 ºC）

Skeleton Non-Stick Coated stainless steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

The Parker Velcon coalescer and separator are installed together in the Facet SuperFlex housing to remove water and dirt from fuel. The fuel passes from the outside to the inside through the coalescer. Dirt is filtered out of the fuel and free/emulsified water infuel is coalesced. The coalesced water droplets, which form on the inside of the coalescer, are repelled from

going further down-stream by the separator. The water settles down to the sump where it is manually drained.

Jet Fuel/Avgas

Gasoline

Diesel

Specifications

Parameter	Specification
Hardware Material	Non-Stick Coated stainless steel
O-ring/Seal/Gasket Material
Outer Diameter	6inch(152mm)
Inner Diameter	Standard
Height	24inch,30 inch,36inch etc
Filter material	Teflon Coated Screen, Synthetic or Pleated Paper Media
End caps	Stainless Steel
Temperature	250 °F（121.1 ºC）
Maximum Differential Pressure	15 psi
Filtration Accuracy	0.5–25μm (customizable)

If you are interested in this filter, please contact us to get the price.

Features

Easy installation and replacement with one-piece design Cost Effective Particle and Emulsified Water Removal from Hydrocarbon Fluid Remove Particulate and Coalesce Water into Large Water Drop Choice of All-Fiberglass Media or Customizable configurations, including stainless steel components for demanding media.

Lower total cost of ownership through competitive pricing per cartridge.

100% performance-tested prior to shipment, ensuring reliability.

Model Number


SO-424V	SO-436VSN5	SO-609VASN5	SO-6IIVASN5	SO-614VSN5
SO-624VA5	SO-640VA5	SO-424V5	SO-630VA	SO-640PV5
SO-430V	SO-430V5	SO-630PV5	SO-644V	SO-436V
SO-633VA	SO-644VA5	SO-614VA5	SO-633VA5	SO-644PV5
SO-623VA5	SO-636PV5	SO-638VA5	SO-648V	SO-624V5
SO-640V	SO-648V5	SO-624VA	SO-640V5	SO-646V5
