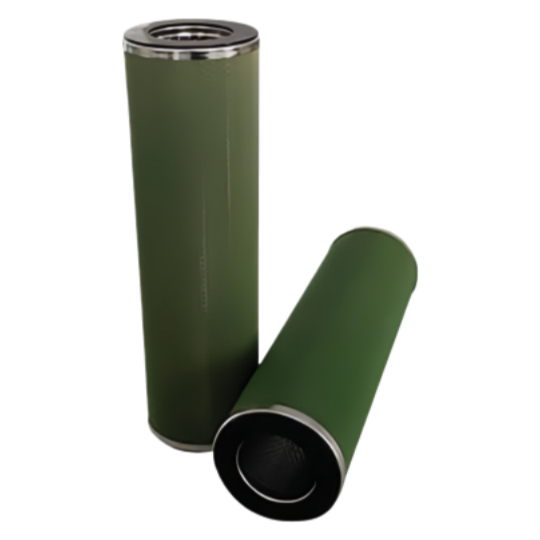

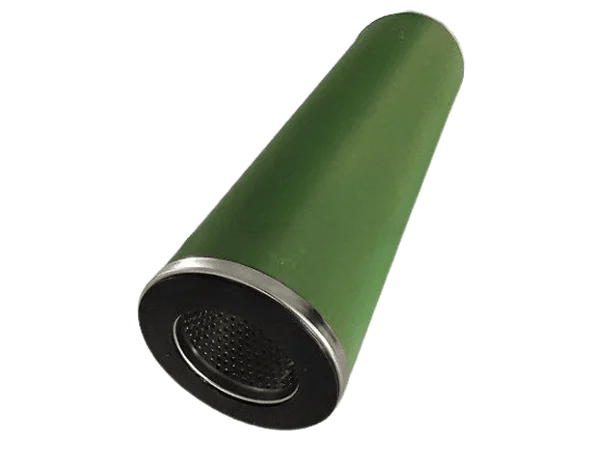

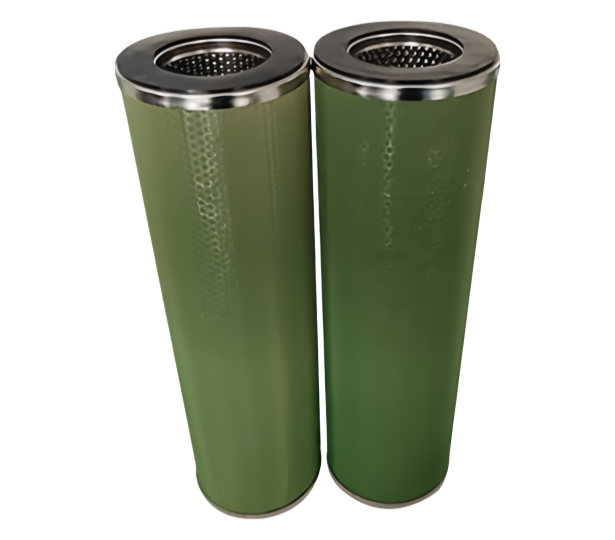

Replacement Cartridge for facet Aviation separator SS318FA

OD 3.5 , 6 , customized inch

Height 16, 18, 20, 32, 36,40, 56 or customized inch

End caps Stainless Steel

Filter layer Fiberglass,Synthetic mesh

Filtration rate 0.3–100 (customizable) μm

Working temperature 240 °F（115 ºC）

Skeleton stainless steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

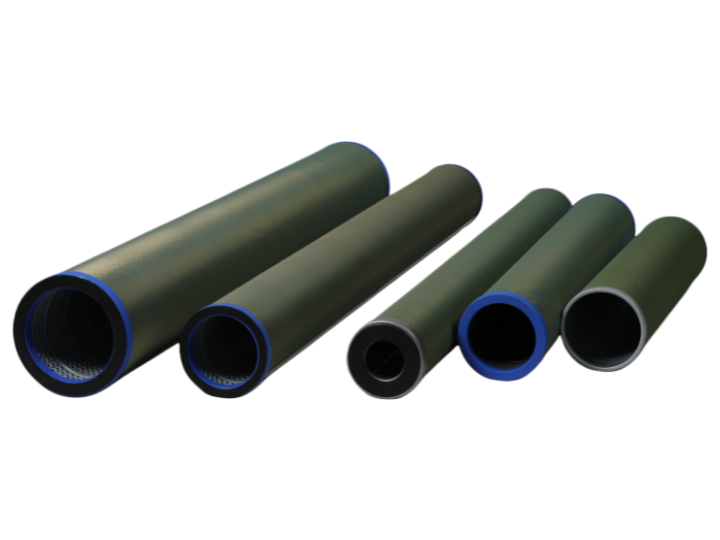

Facet’s SM Series synthetic separator cartridges are designed for efficient separation of liquids and solids from hydrocarbon-based fluids. Featuring a specially treated hydrophobic media, these cartridges offer superior separation of fine water droplets compared to standard Teflon screens. The design includes an ultrasonically seamed double tube of synthetic screen around an epoxy-coated metal shell, with adhesive-bonded metal end caps and gaskets. Utilizing advanced hydrophobic composite materials, they effectively remove emulsified water and particulates, ensuring purified liquids for critical operations and protecting downstream equipment from corrosion and damage.

Refineries: Removes water and particulates from crude oil, diesel, and gasoline.

Chemical Processing: Ensures clean solvents and process fluids in pharmaceutical and specialty chemical production.

Pipeline Systems: Prevents water-induced corrosion and blockages in hydrocarbon transportation.

Aviation: Safeguards jet fuel systems from water contamination.

Natural Gas: Dehydrates gas streams to meet pipeline quality standards.

Marine: Protects engines and fuel systems in maritime environments.

Specifications

Parameter	Specification
Hardware Material	stainless steel
O-ring/Seal/Gasket Material	Buna-N
Outer Diameter	3.5inch, 6inchor customized
Inner Diameter	Standard or customized
Height	16inch, 18inch, 20inch, 32inch, 36inch,40inch, 56inch or customized
Filter material	Fiberglass,Synthetic mesh
End caps	Stainless Steel
Temperature	240 °F（115 ºC）
Maximum Differential Pressure	75 psi（5.17 bar）
Filtration Accuracy	0.3–100μm (customizable)

If you are interested in this filter, please contact us to get the price.

Features

Parameter
SS318FA-5	SS324FA-5	SS412FC-5	SS415FB-5	SS417FB-5
SS412FC	SS422FC	SS422FC-5	SS424FB-5	SS430FB-5
SS432FC	SS432FC-5	SS436FB-5	SS609FB-5	SS609FF-5
SS611FD-5	SS612FB-5	SS614FD-5	SS616FD-5	SS618FB-5
SS622FD-5	SS624FB-5	SS624FE-5	SS624FF-5	SS629FD-5
SS630FB-5	SS630FD-5	SS630FE-5	SS630FF-5	SS633FB-5
SS636FB-5	SS636FD-5	SS636FE-5	SS636FF-5	SS638FD-5
SS640FD-5	SS640FE-5	SS640FF-5	SS643FB-5	SS643FD-5
SS643FF-5	SS644FB-5	SS644FD-5	SS644FE-5	SS644FF-5
SS648FD-5	SS648FF-5	SS656FB-5	SS656FF-5

Model Number

Aviation fuel, gasoline, kerosene, diesel

Liquefied petroleum gas, stone tar, benzene, toluene, cumene, polypropylene, cumene, etc

Turbine oils and other low viscosity hydraulic fluids, lubricating oils

Cycloethane, isopropanol, cycloethanol, cycloacetophenone and other hydrocarbon compounds

Didn't find your industry solution?

Consult our technical experts immediately for customized filtration solutions.
