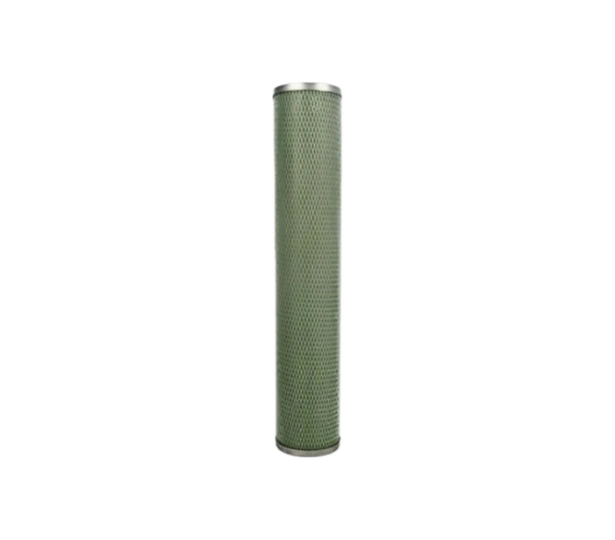

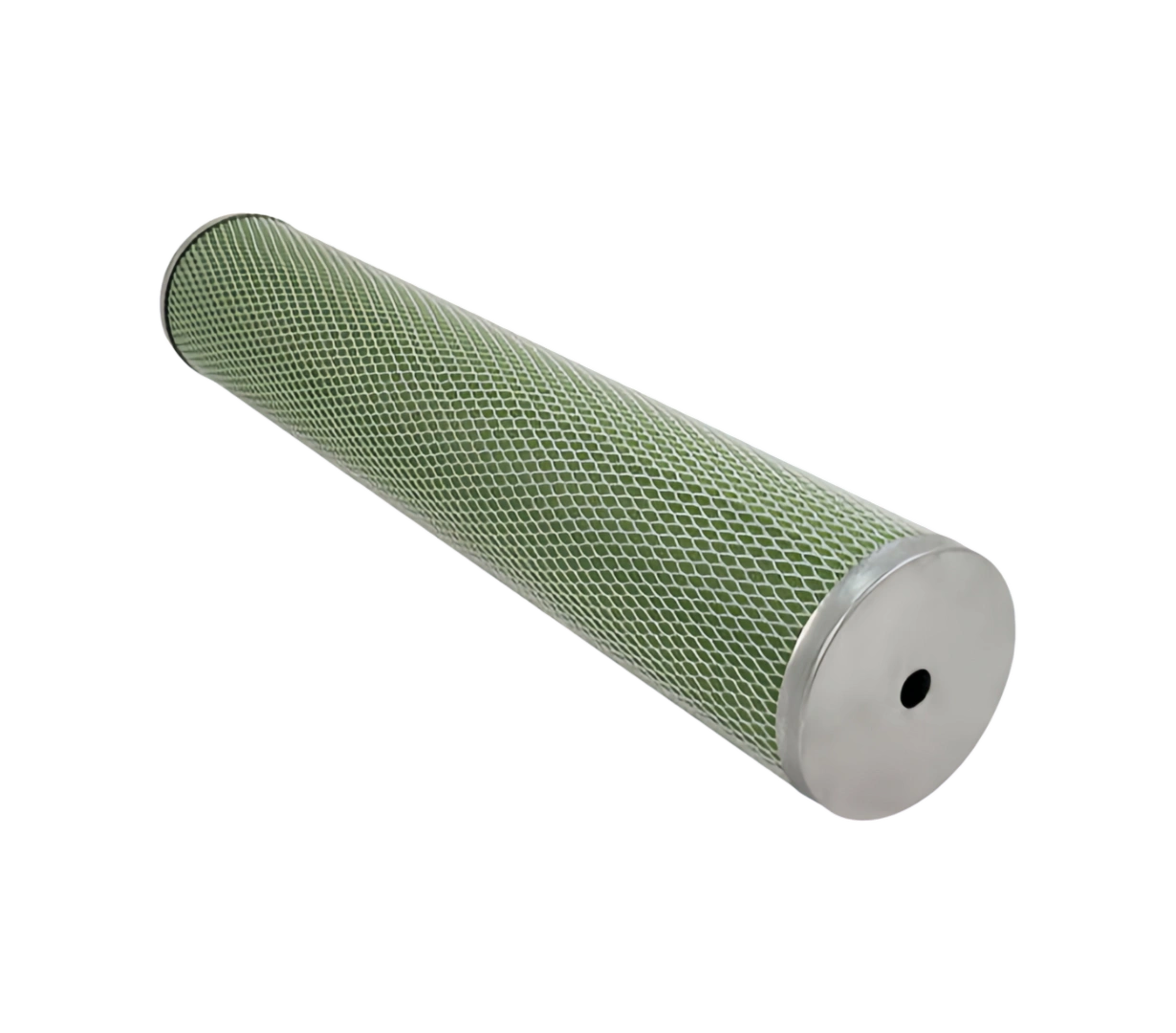

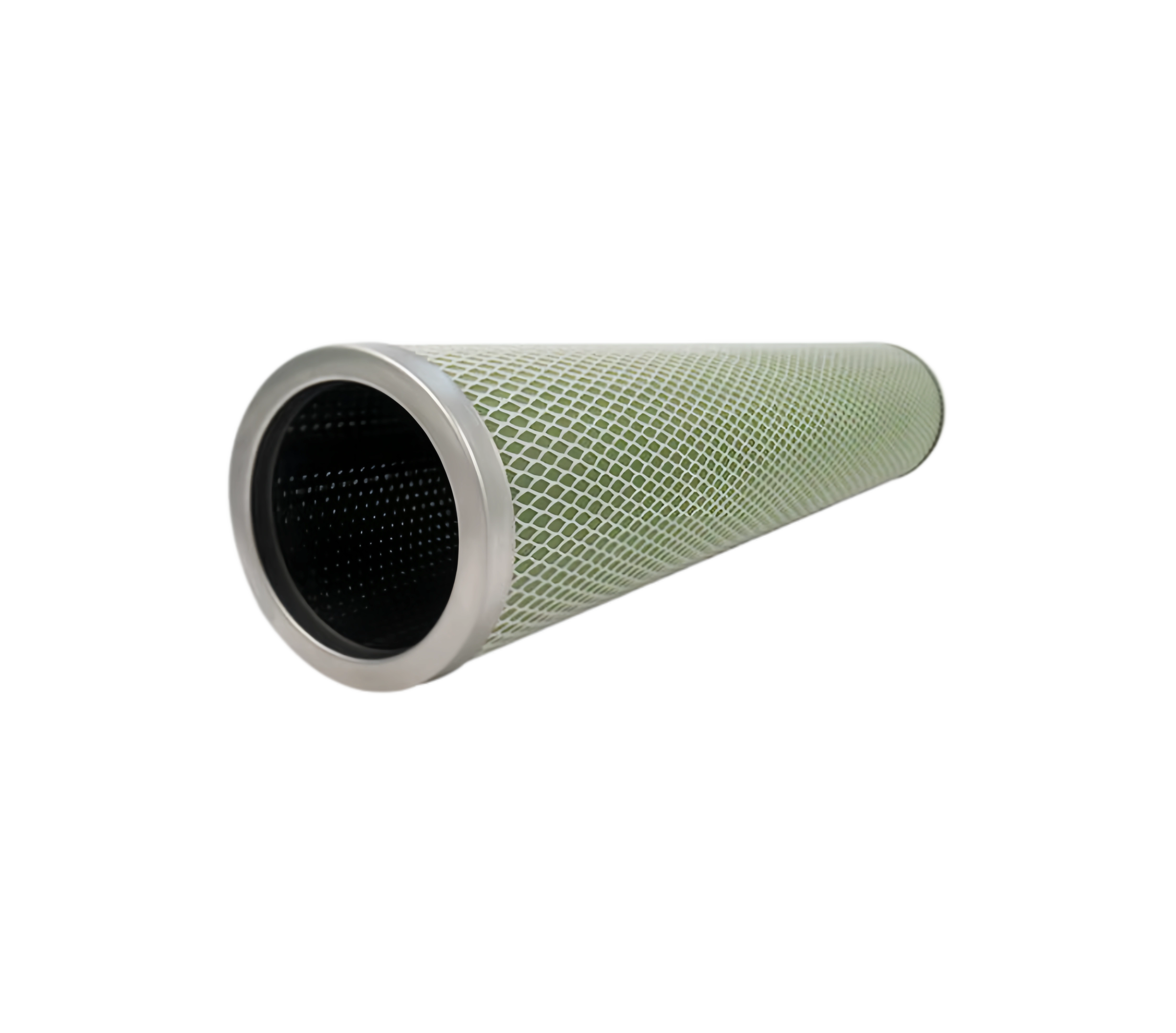

Replacement Cartridge for facet Aviation separator ST318FA-5

OD 3.5, 6 or customized inch

Height 16, 18, 20, 32, 36,40, 56 or customized inch

End caps Stainless Steel

Filter layer Fiberglass,Teflon coated screen

Filtration rate 0.3–100 (customizable) μm

Working temperature 240 °F（115 ºC）

Skeleton stainless steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

Facet’s ST-5 Series Teflon® separators use Teflon® coated screen wrapped around an epoxy coated metal shell, lockseam folded, then adhesive bonded to metal end caps. The design includes an ultrasonically seamed double tube of synthetic screen around an epoxy-coated metal shell, with adhesive-bonded metal end caps and gaskets. Utilizing advanced hydrophobic composite materials, they effectively remove emulsified water and particulates, ensuring purified liquids for critical operations and protecting downstream equipment from corrosion and damage.

Specifications

Parameter	Specification
Hardware Material	stainless steel
O-ring/Seal/Gasket Material	Buna-N
Outer Diameter	3.5inch, 6inchor customized
Inner Diameter	Standard or customized
Height	16inch, 18inch, 20inch, 32inch, 36inch,40inch, 56inch or customized
Filter material	Fiberglass,Teflon coated screen
End caps	Stainless Steel
Temperature	240 °F（115 ºC）
Maximum Differential Pressure	75 psi（5.17 bar）
Filtration Accuracy	0.3–100μm (customizable)

If you are interested in this filter, please contact us to get the price.

Features

Aviation fuel, gasoline, kerosene, diesel

Liquefied petroleum gas, stone tar, benzene, toluene, cumene, polypropylene, cumene, etc

Turbine oils and other low viscosity hydraulic fluids, lubricating oils

Cycloethane, isopropanol, cycloethanol, cycloacetophenone and other hydrocarbon compounds

Model Number


ST318FA-5	ST324FA-5	ST412FC-5	ST415FB-5	ST417FB-5
ST422FC-5	ST424FB-5	ST430FB-5	ST432FC-5	ST436FB-5
ST609FB-5	ST609FF-5	ST611FD-5	ST612FB-5	ST614FD-5
ST616FD-5	ST618FB-5	ST622FD-5	ST624FB-5	ST624FE-5
ST624FF-5	ST629FD-5	ST630FB-5	ST630FD-5	ST630FE-5
ST630FF-5	ST633FB-5	ST636FB-5	ST636FD-5	ST636FE-5
ST636FF-5	ST638FD-5	ST640FD-5	ST640FE-5	ST640FF-5
ST643FB-5	ST643FD-5	ST643FF-5	ST644FB-5	ST644FD-5
ST644FE-5	ST644FF-5	ST648FD-5	ST648FF-5	ST656FB-5
ST656FF-5
