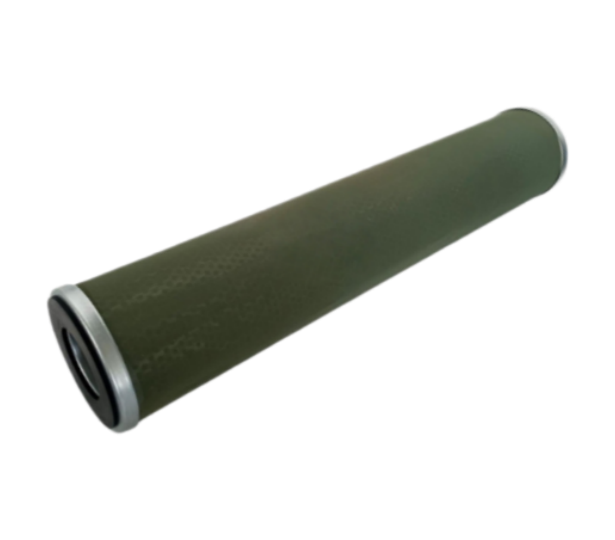

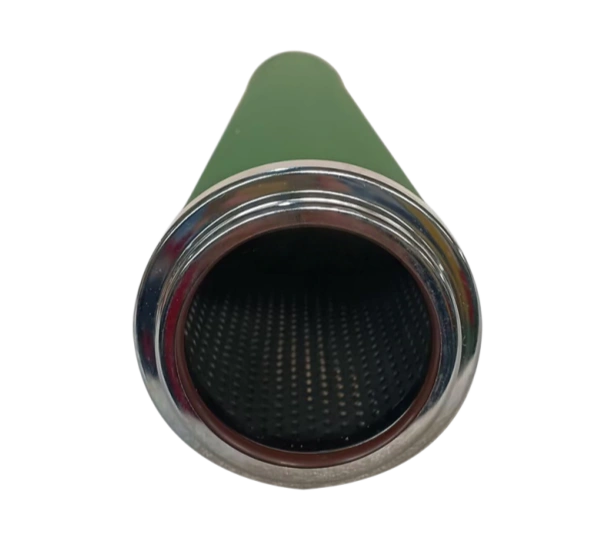

The LSS2F1H is a two-stage, high-efficiency liquid-liquid separation cartridge designed primarily for removing free water and solids from hydrocarbon fluids (like fuels, oils, and solvents). Its core purpose is to deliver a clean, dry continuous phase (e.g., oil) at the outlet.

Multi-layer media (pleated filter paper, fiberglass, and glass fiber cotton) traps solid particulates and mechanical impurities. Coalescence:Hydrophilic materials merge small water droplets into larger volumes, enabling effective separation from the fluid stream.

Separation:Gravity and hydrophobic layers separate coalesced water from the purified liquid, which is then discharged.

Oil & Gas Industry:Separates water from crude oil and natural gas streams, protecting downstream equipment.

Petrochemical Industry:Purifies solvents, acids, and alkalis in refining processes.

Aviation Fuel:Removes water and particulates from jet fuel, ensuring engine performance and safety.

Power Generation:Cleans lubricating oils and coolants in turbines and generators.

Easy installation and replacement with one-piece design Cost Effective Particle and Emulsified Water Removal from Hydrocarbon Fluid Remove Particulate and Coalesce Water into Large Water Drop Choice of All-Fiberglass Media or Customizable configurations, including stainless steel components for demanding media.

Lower total cost of ownership through competitive pricing per cartridge.

100% performance-tested prior to shipment, ensuring reliability.
