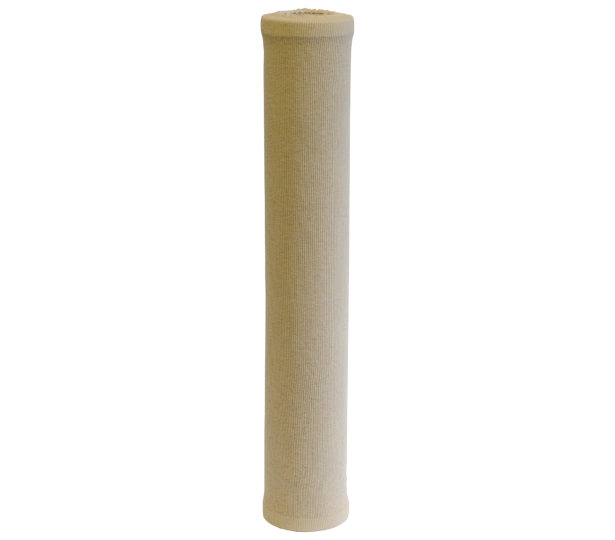

Replacement Coalescer Cartridge for Kaydon CI3520-P

OD 3.5 inch

Height 10 /20 /40 inch

End caps SS 304/316 (optional)

Filter layer fiberglass

Filtration rate 1–6 (customizable) μm

Working temperature 10℃ - 49℃

Skeleton Aluminum

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

The Kaydon Filtration CI Series Coalescer Elements are designed for water separation and filtration of diesel fuel #1 and #2. When paired with a Kaydon Filtration separator element, they provide efficient water removal and particle filtration. The CI coalescer elements offer a simple and effective solution for diesel fuel conditioning. The CI-35XXP family features a patented design using multiple types of fiberglass in a pleated construction for enhanced performance.

Specifications

Parameter	Specification
Hardware Material	Aluminum
O-ring/Seal/Gasket Material	Viton/Buna-N
Outer Diameter	3.5 inch (8.9 cm)
Height	10inch/20inch/40 inch
Filter material	fiberglass
End caps	SS 304/316 (optional)
Temperature	10℃ - 49℃
Maximum Differential Pressure	75 psid / 5.2 BAR
Filtration Accuracy	1–6μm (customizable)

If you are interested in this filter, please contact us to get the price.

Features

Easy installation and replacement with one-piece design Cost Effective Particle and Emulsified Water Removal from Hydrocarbon Fluid Remove Particulate and Coalesce Water into Large Water Drop Choice of All-Fiberglass Media or Customizable configurations, including stainless steel components for demanding media.

Lower total cost of ownership through competitive pricing per cartridge.

100% performance-tested prior to shipment, ensuring reliability.

Model Number


CI-3520	CI-3510P	CI-3520P	CI-3540P
