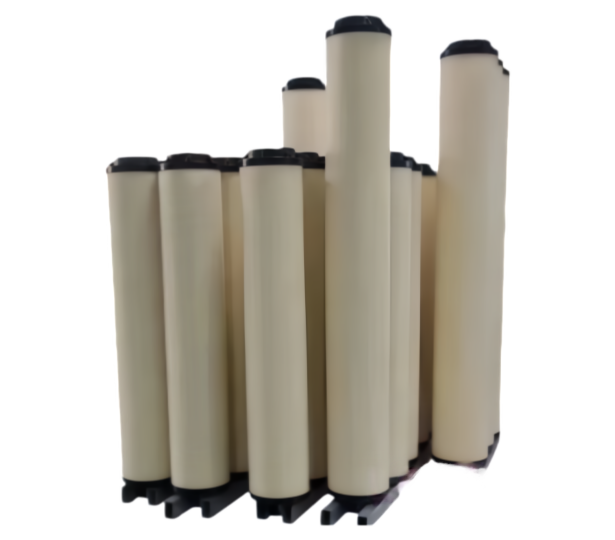

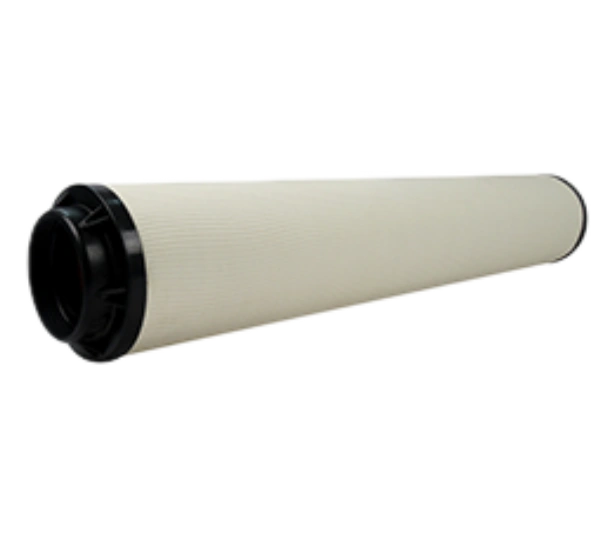

Replacement Cartridge for facet coalescer CM-11-5

OD 6 inch

Height 3.5 inch

End caps injection molded, glass-filled nylon

Filter layer Fiberglass

Filtration rate 0.3–100 (customizable) μm

Working temperature 240 °F（115 ºC）

Skeleton stainless steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

Facet CM Series coalescer cartridges offer the fin-est performance available. This line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.

The Facet coalescer separator housings equipped with CM Series coalescer and companion separator cartridges have been tested and fully qualifiedto EI 1581, Fifth Edition, for category “M”, in both vertical and horizontal orientations.Built for balanced fluid flow-thru and structural strength, each CM Series coalescer cartridge is a single piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a coated, perforated met-al center tube- all encased in an outer sock mate- rial.

Specifications

Parameter	Specification
Hardware Material	stainless steel
O-ring/Seal/Gasket Material	Buna-N
Outer Diameter	6 in (152 mm)
Inner Diameter	89mm
Height	Standard
Filter material	Fiberglass
End caps	injection molded, glass-filled nylon
Temperature	240 °F（115 ºC）
Maximum Differential Pressure	75 psi（5.17 bar）
Filtration Accuracy	0.3–100μm (customizable)

If you are interested in this filter, please contact us to get the price.

Features

Protects process analyzers and safeguards instrument air-operated equipment and systems.

Prevents orifice plugging in pneumatic controllers and improves the accuracy of gas measurements in field or plant environments.

Reduces freeze-out and corrosion issues while minimizing fouling in small gas-driven engines.

Delivers consistent, high-quality gas for all operations utilizing produced gas, ensuring reliable and repeatable performance.3. Engineered Flexibility

Customizable configurations, including stainless steel components for demanding media.

Available in high-capacity lengths to meet the needs of large-scale systems.

Model Number

Model#
CM-11-5	CM-14-5	CM-14SB-5	CM-22-5	CM-22SB-5
CM-28-5	CM-28SB-5	CM-33-5	CM-33SB-5	CM-38-5
CM-38SB-5	CM-43-5	CM-43SB-5	CM-56-5	CM-56SB-5
