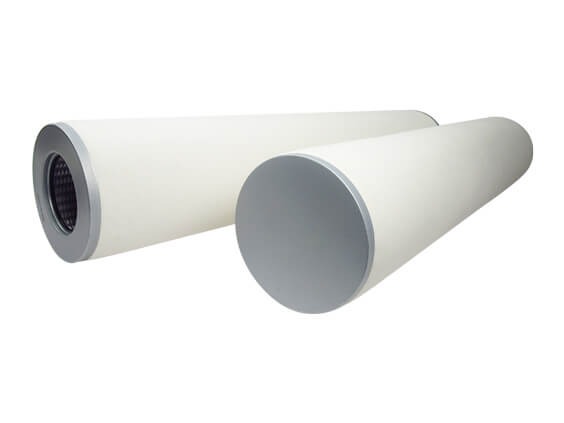

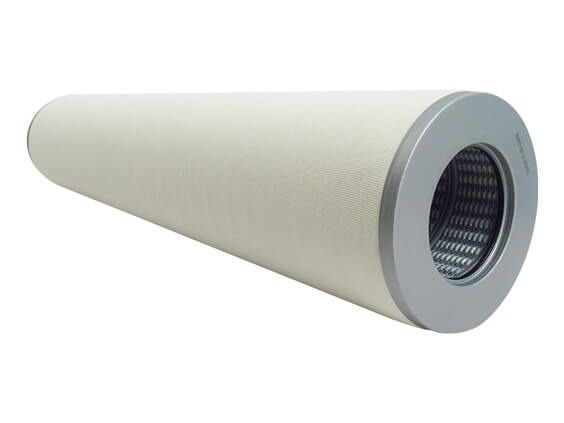

Natural Gas Coalescer Element Filter Replacement for pall LCS06PXSH

OD Standard/Customized inch

Height Standard/Customized inch

End caps Polypropylene / SS 304/316 (optional)

Filter layer Hydrophilic composite media (polypropylene/glass fiber), reinforced end caps

Filtration rate 1–6μm (customizable) μm

Working temperature 60℃

Skeleton Epoxy Potted Stainless Steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

The Replacement Filter for Pall Coalescer LCS06PXSH filter is liquid-liquid coalescer designed for cost-effective separation of water and solids from hydrocarbon-based fluids.

It utilizes an advanced hydrophilic composite medium that effectively coalesces emulsified water droplets even under very low interfacial tension conditions-outperforming traditional glass-fiber media .Suitable for polishing refined products (gasoline, diesel, jet fuel), hydrocarbon condensates, and refinery intermediates, this coalescer ensures purified output, protects downstream equipment from corrosion and damage, and delivers long-term reliability in efficiency-driven operations.

Application:

Aviation: Safeguards jet fuel systems from water contamination.

Natural Gas: Dehydrates gas streams to meet pipeline quality standards.

Marine: Protects engines and fuel systems in maritime environments.

Refineries: Removes water and particulates from crude oil, diesel, and gasoline.

Chemical Processing: Ensures clean solvents and process fluids in pharmaceutical and specialty chemical production.

Pipeline Systems: Prevents water-induced corrosion and blockages in hydrocarbon transportation.

Specifications

Parameter	Specification
Hardware Material	Epoxy Potted Stainless Steel
O-ring/Seal/Gasket Material	Fluoropolymer ElastomerO-Ring
Outer Diameter	3.75 in (9.53 cm)
Height	6in/20in/40 in
Filter material	Hydrophilic composite media (polypropylene/glass fiber), reinforced end caps
End caps	Polypropylene / SS 304/316 (optional)
Temperature	60℃
Maximum Differential Pressure	1.03~3.5bar (30 psid)
Filtration Accuracy	1–6μm (customizable)
Water Removal Efficiency	≥99.9%

If you are interested in this filter, please contact us to get the price.

Features

High-Efficiency Filtration
Multi-layer composite filter media ensures precise removal of fine particulates.
Versatile Media Options
Available in all-fiberglass or customizable configurations, including stainless steel components for demanding applications.
Superior Coalescing Performance
Engineered fiberglass layers effectively coalesce emulsified water into larger droplets for easy separation.
High Flow Capacity
Optimized structure allows high flow density while maintaining compact filter size.
Reliable One-Piece Design
Integrated construction enables quick installation and easy replacement.
Extended Service Life
High dirt-holding capacity reduces replacement frequency and maintenance costs.
Cost-Effective Operation
Competitive cartridge pricing combined with long service life lowers total cost of ownership.
Performance-Tested Quality
Each element is 100% tested prior to shipment to ensure consistent and reliable performance.

Model Number

Moder Number
LCS06PXSH	LCS4PXSH	LCS2PXSH
