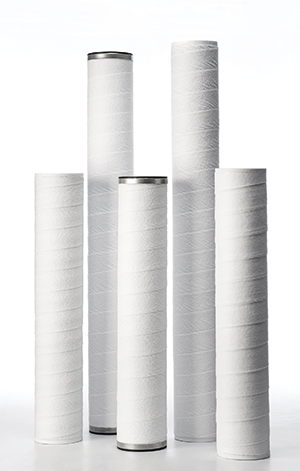

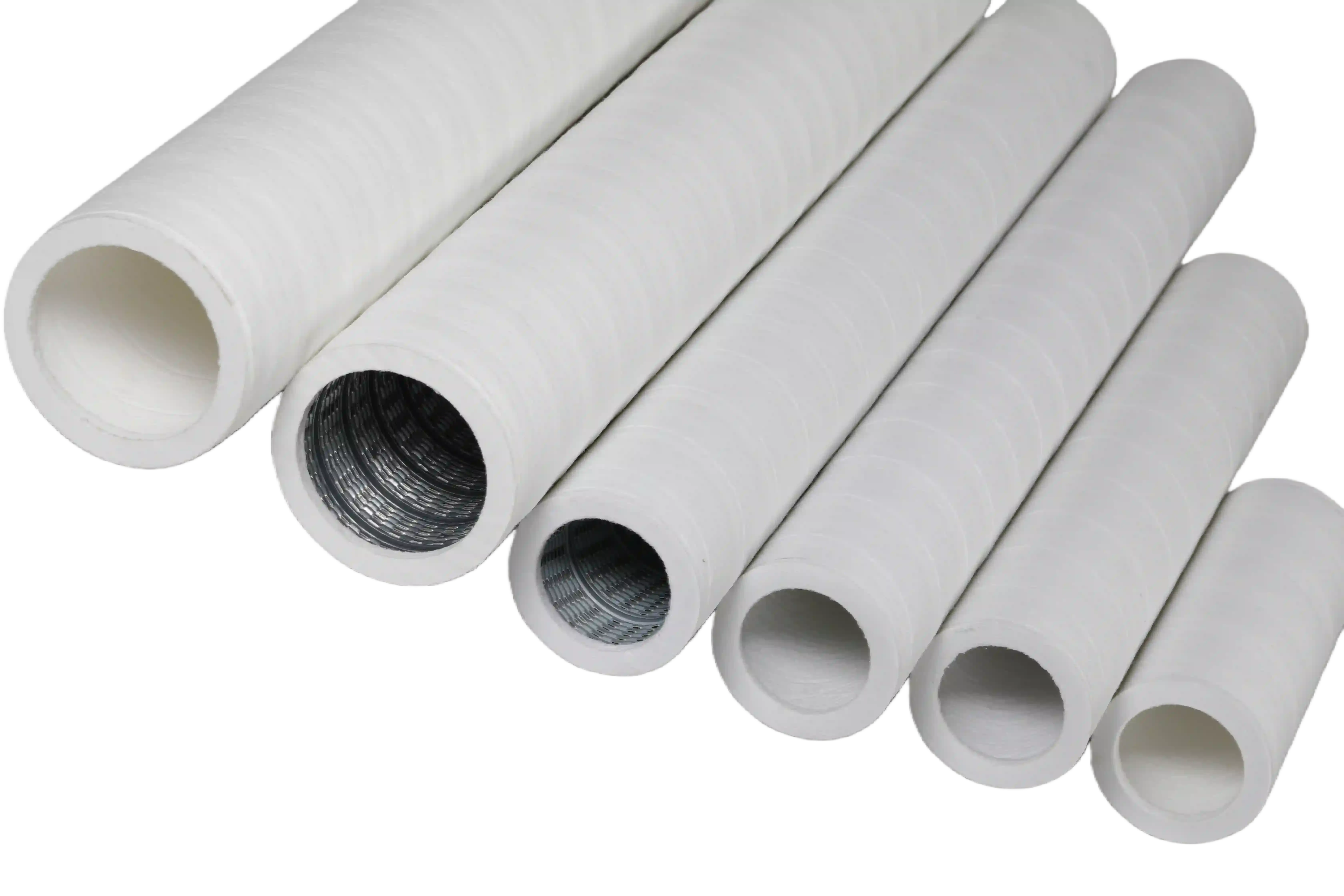

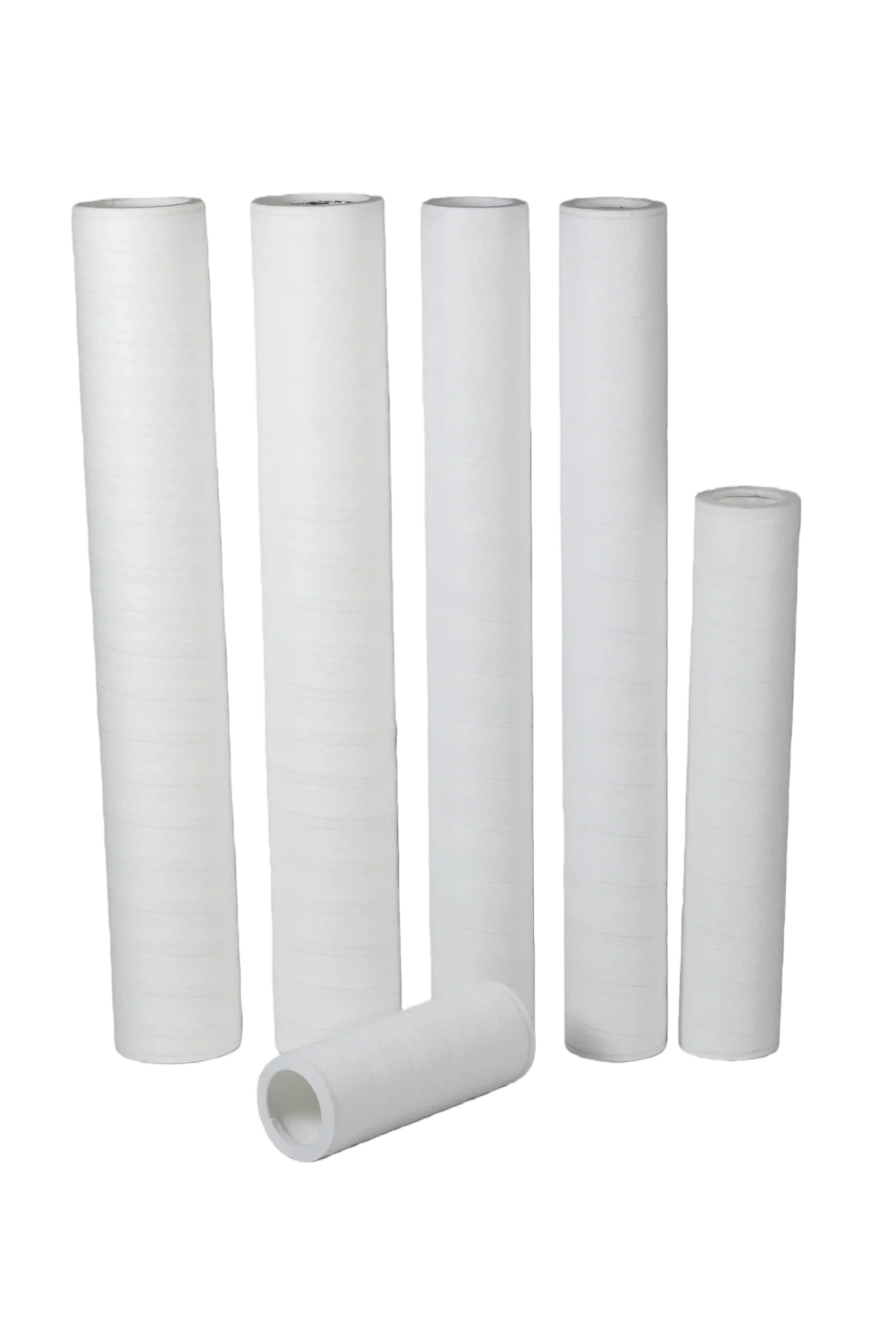

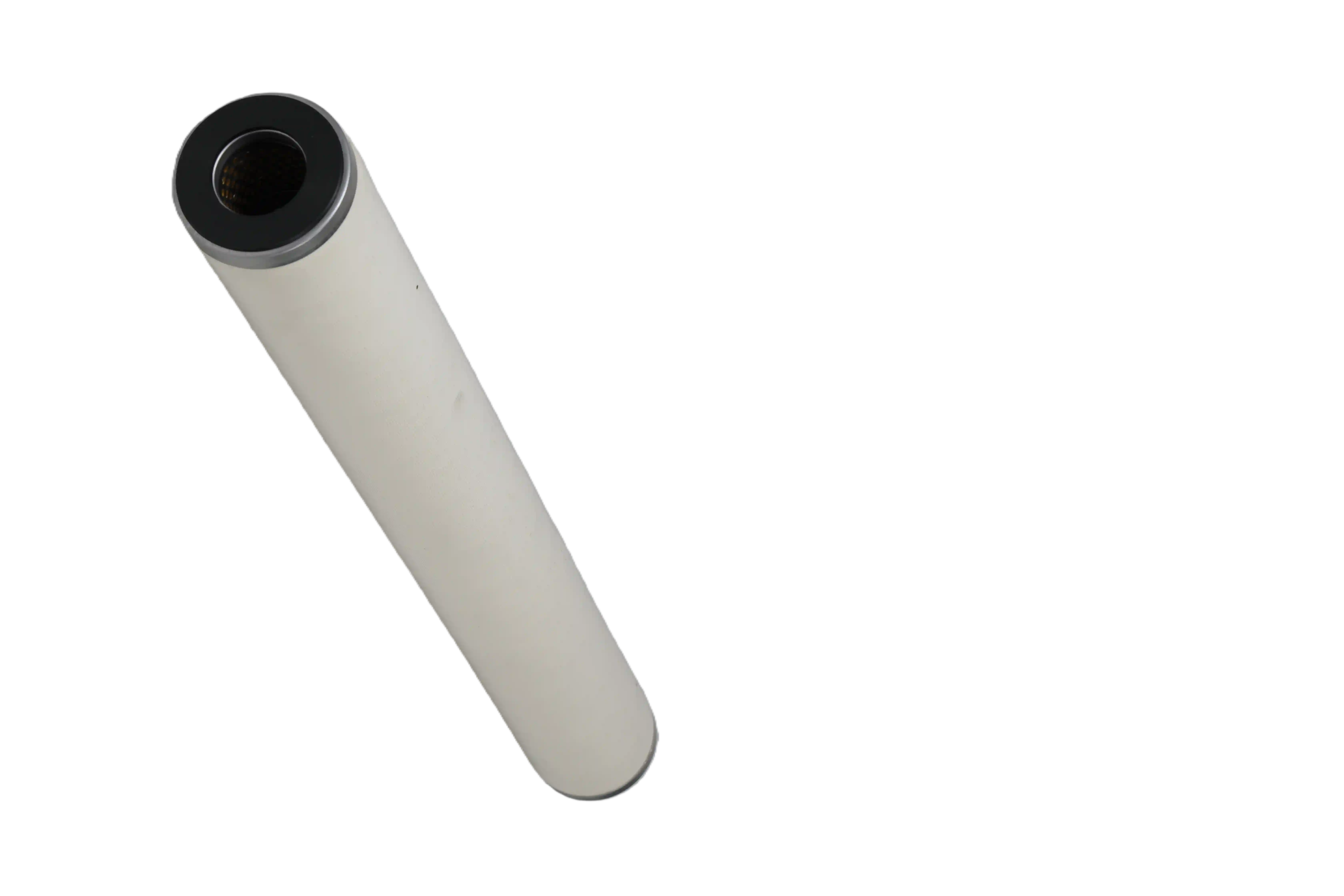

Replacement natural gas filter cartridge for Jonell JFG-336-R

OD 3.5 /4.5 /5.5 inch

Height 12 /24 /36 /72 inch

End caps Tin Plated, Stainless, Nylon

Filter layer Microglass

Filtration rate 1~25 μm

Working temperature 275F

Skeleton Tin Plated, Stainless

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

The Jonell Systems Depth-LOK™ Series (JFG) is a high-performance depth-style fiberglass filter cartridge engineered for use in gas filter-separator vessels which delivers reliable removal of solid contaminants and liquid aerosols in demanding gas processing environments.

Constructed with a seamless fiberglass depth media, the JFG series provides an optimal balance of particle retention and liquid pre-coalescing capability, making it ideal for wet gas streams with high liquid loading.

Designed for outside-to-inside flow, these cartridges ensure efficient contaminant capture while maintaining low pressure drop and extended service life. With multiple micron ratings (0.3–25μm) and flexible configurations, the JFG series is compatible with most standard filter-separator housings and widely used as a replacement for major brands.

We warrants this part to meet or exceed OEM specifications, in Form, Fit, and Function,tested in accordance with ISO standards, with equivalent performance to original brands.

Application
Natural Gas Filtration Systems

Gas Transmission & Distribution Pipelines

Compressor Suction & Discharge Filtration

Amine & Glycol Contactor Protection

Gas Gathering & Processing Facilities

Fuel Gas Conditioning Systems

Molecular Sieve & Dehydration Units

Gas Storage & Metering Stations (Custody Transfer)

Specifications

Parameter	Specification
Hardware Material	Tin Plated, Stainless
O-ring/Seal/Gasket Material	Buna, Viton
Outer Diameter	3.5inch/4.5inch/5.5inch
Height	12 inch /24inch /36inch/72inch
Filter material	Fiberglass
End caps	Tin Plated, Stainless, Nylon
Temperature	275F
Maximum Differential Pressure	12 - 15 PSID
Filtration Accuracy	1~25μm

If you are interested in this filter, please contact us to get the price.

Features

Seamless Fiberglass Depth Media:Provides high dirt-holding capacity and consistent filtration efficiency

High Efficiency Filtration (Up to 98%):Effectively removes fine solids and low surface tension aerosols

Excellent Pre-Coalescing Performance: Ideal upstream protection for coalescers in wet gas applications

Wide Micron Range (0.3–25 μm):Flexible selection for different filtration requirements

Robust Mechanical Design:Available with carbon steel or stainless steel hardware for harsh environments

Low Pressure Drop & Long Service Life:Optimized depth structure reduces operating costs and change-out frequency

Broad Compatibility:Direct replacement for major brands such as PECO, Pall, and parker

Model Number

Moder Number
JFG-12	JFG-12-UF	JFG-18	JFG-18-UF	JFG-24-R
JFG-24-UF	JFG-30-R-K-SPL	JFG-36	JFG-36-K-T	JFG-36-MP-1
JFG-36-R	JFG-36-UF	JFG-36-V	JFG-60-KV-SPL	JFG-60-R-K-SPL
JFG-60-R-KV-SPL	JFG-72	JFG-72-K	JFG-72-R	JFG-72-R-K-T
JFG-72-UF	JFG-72RK	JFG-312	JFG-312-5	JFG-312-K
JFG-312-UF	JFG-312UF	JFG-318	JFG-318-R	JFG-318-UF
JFG-324	JFG-324-10	JFG-324-ASSV	JFG-324-K	JFG-324-SK
JFG-324-SS	JFG-324-SS-V	JFG-324-UF	JFG-324-UF-SS	JFG-324-UF-SS-V
JFG-324-V	JFG-3245	JFG-32425	JFG-336	JFG-336-10
JFG-336-10-CE	JFG-336-50	JFG-336-MP-1	JFG-336-N	JFG-336-N-SS
JFG-336-R	JFG-336-R-K	JFG-336-SK-T	JFG-336-UF	JFG-336-V
JFG-336CE	JFG-336DUF	JFG-336HD	JFG-336K	JFG-336R
JFG-336SS	JFG-336UF	JFG-336UFSS	JFG-3365	JFG-33610
JFG-33610VR	JFG-33625	JFG-360UF	JFG-3610117	JFG-372
JFG-372-5	JFG-372-10-K	JFG-372-25	JFG-372-25V	JFG-372-50
JFG-372-CE	JFG-372-CE-MP-1	JFG-372-CE-UF	JFG-372-DUF	JFG-372-K-EXT
JFG-372-MP-1	JFG-372-SK	JFG-372-SK-T	JFG-372-UF	JFG-372-V
JFG-372EPDM	JFG-372K	JFG-518-CE	JFG-518-CE-G-SS	JFG-524
JFG-524CE-EXT316V	JFG-536	JFG-536-10	JFG-536-CE	JFG-536-CE-EXT
JFG-536-CE-EXT-SS	JFG-536-CE-EXT-V	JFG-536-CE-G-316	JFG-536-CE-G-V	JFG-536-CE-GV
JFG-536-CE-MP-1	JFG-536-CE-R-SS	JFG-536-CE-V	JFG-536-R	JFG-536-UF
JFG-536-UF-CE	JFG-536-UF-CE-G	JFG-536-UF-CE-EXT	JFG-536-UF-CE-R-V	JFG-536-US-CE-R
JFG-536CE	JFG-536CE-10	JFG-536CE-EXT-MP1	JFG-536CE-R	JFG-536CEG
JFG-536CEGEXT	JFG-536UFCE	JFG-536UFCER	JFG-536UFCERSS	JFG-536UFCESS
JFG-560	JFG-560-CE-EXT-SS	JFG-560CEEXT	JFG-572	JFG-572-CE
JFG-572-CE-EXT	JFG-572-CE-EXT-G	JFG-572-CE-MP-1	JFG-572-UF	JFG-572-UF-CE
JFG-572CE	JFG-572CEEXTSS	JFG-572CEG	JFG-614-5	JFG-614-10
JFG-618-5	JFG-618-10	JFG-622-5	JFG-622-10	JFG-629
JFG-629-2	JFG-629-10	JFG-636-2	JFG-636-5	JFG-636-10-OS
JFG-644	JFG-644-10	JFG-656-3-TB	JFG-718-5	JFG-744
JFG-30226-R	JFG-36346-R	JFG-36349-R
