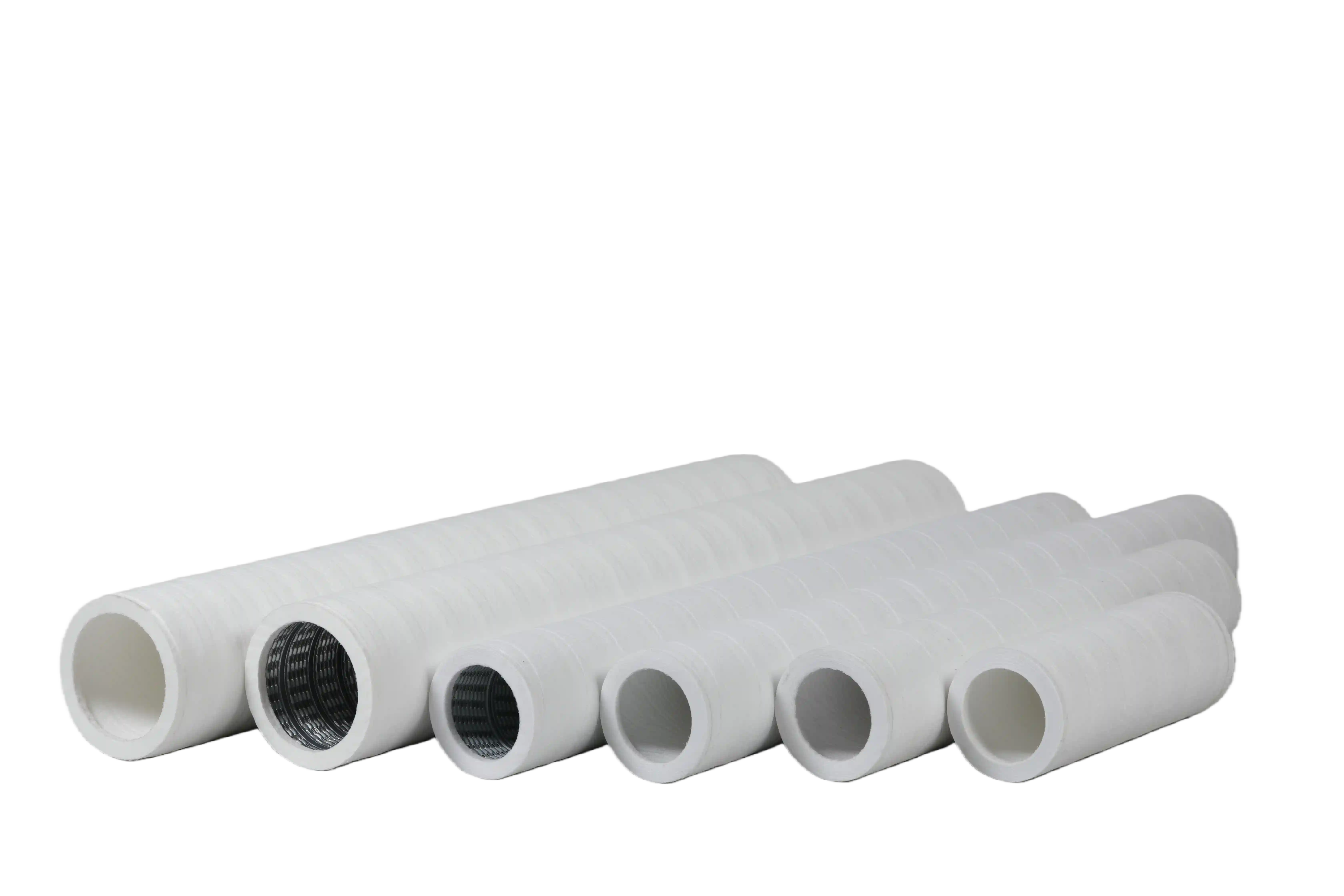

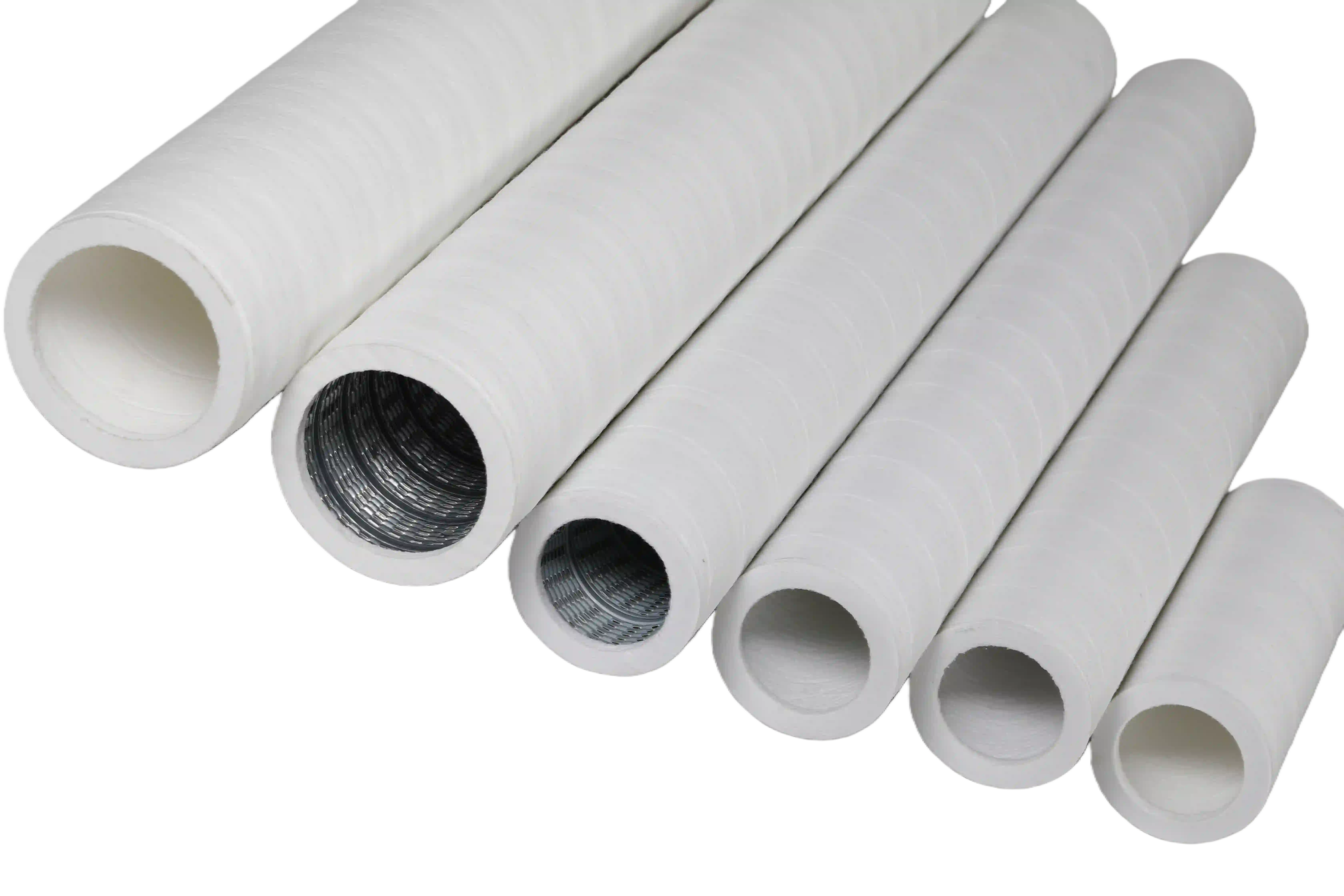

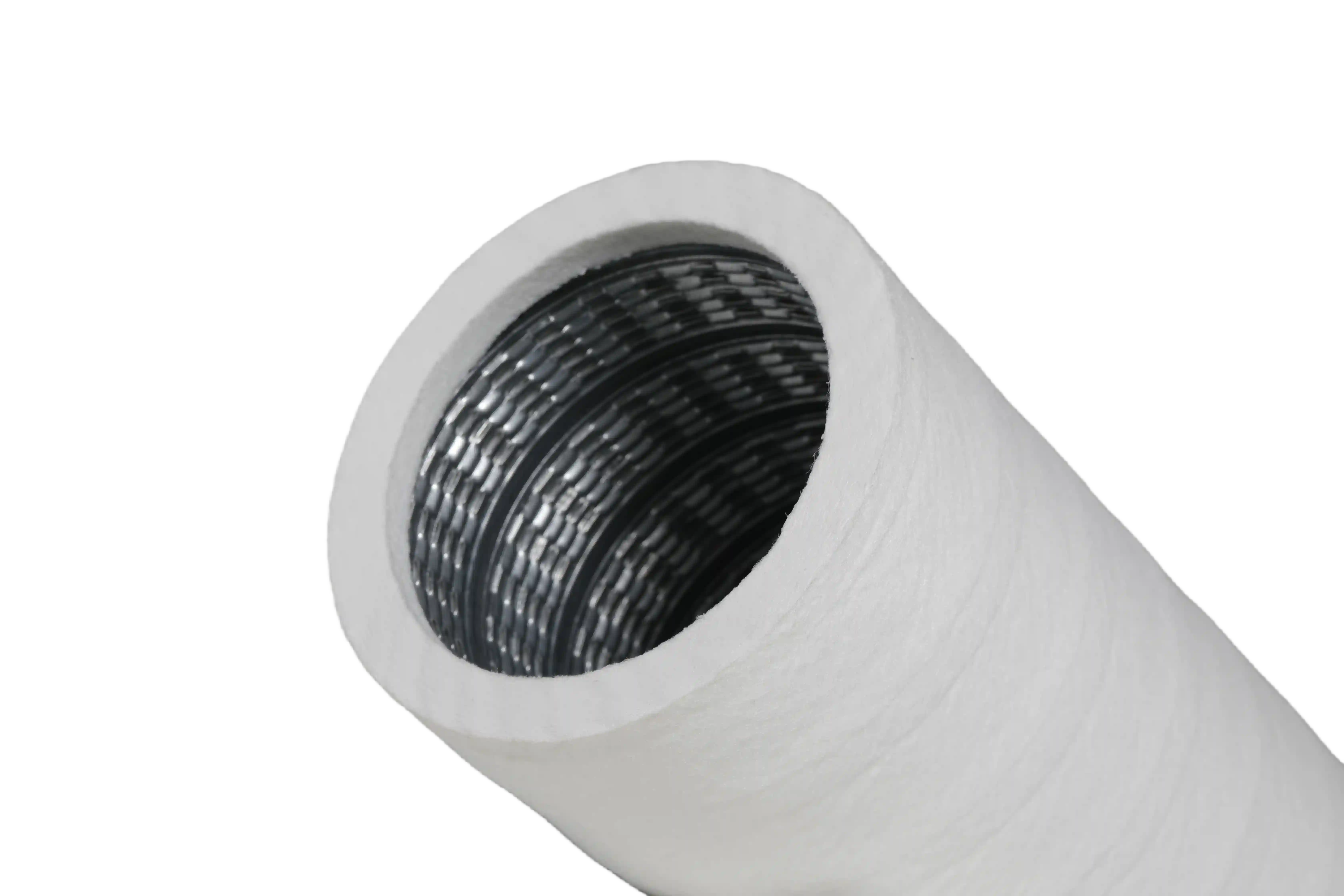

Replacement natural gas filter for Jonell JFS 336

OD 3 /4.5 /5.5 inch

Height 12 /24 /28 /36 /43 /48 /72 /79 inch

End caps Stainless, Tin

Filter layer resin coated fiberglass screen, cellulose

Filtration rate 0.3, 0.5, 1, 5, 10 μm

Working temperature Min -60°F Max 240°F (Polyester) 180°F (Polypropylene)

Skeleton Polyester,Polypropylene

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

For filter separators and dry gas filters are typically used in applications like compressor inlet, contactor protection, pipelines and meter stations.

They are used for removing a wide range of solid contaminants including sand, iron oxide, iron sulphide from dry gas and for pre-coalescingdroplets for easier second stage removal in filter separators.

Specifications

Parameter	Specification
Hardware Material	Coreless, Tin Plated, Stainless
O-ring/Seal/Gasket Material	Gasket: Same as Media type, Buna, Viton
Outer Diameter	3 /4.5/5.5inch
Height	12 /24 /28 /36 /43 /48 /72inch
Filter material	Depth style polyester, depth style polypropylene
End caps	Stainless, Tin
Temperature	Min -60°F; Max 240°F (Polyester) 180°F (Polypropylene)
Maximum Differential Pressure	12 - 15 PSID
Filtration Accuracy	0.3, 0.5, 1, 5, 10μm

If you are interested in this filter, please contact us to get the price.

Features

Easy installation and replacement with one-piece design

Cost Effective Particle and Emulsified Water Removal from Hydrocarbon Fluid Remove Particulate and Coalesce Water into Large Water Drop Choice of All-Fiberglass Media or Customizable configurations, including stainless steel components for demanding media.

Lower total cost of ownership through competitive pricing per cartridge.

100% performance-tested prior to shipment, ensuring reliability.

Model Number

Moder Number
JFS12	JFS24	JFS36	JFS48	JFS72
JFS312	JFS324	JFS336	JFS348	JFS372
JFS512	JFS524	JFS536	JFS548	JFS572
JFS312-ECP-CE-FF	JFS36-ECP-SF	JFS324-ETB-FF	JFS324-ECP-CF	JFS324-ECP-SF
JFS336-ECP-SF	JFS336-ETB-SF	JFS336-ETB-DOE-SF	JFS336-ETP-UF	JFS372-ECP-SF
JFS372-ETP-SF	JFS372-ETB-FF	JFS372-ETV	JFS312-ECB-SF	JFS312-ECV-SF
JFS312-ETB-SF	JFS312-ETV-SF	JFS324-ECB-SF	JFS324-ECV-SF	JFS324-ETB-SF
JFS324-ETV-SF	JFS336-ECB-SF	JFS336-ECV-SF	JFS336-ETV-SF	JFS348-ECB-SF
JFS348-ECV-SF	JFS348-ETB-SF	JFS348-ETV-SF	JFS372-ECB-SF	JFS372-ECV-SF
JFS372-ETB-SF	JFS372-ETV-SF	JFS512-FCV-CE-FF	JFS524-FCV-CE-FF	JFS536-FCV-CE-FF
JFS536-ETB-SF	JFS548-FCV-CE-FF	JFS572-FCV-CE-FF	JFS324-ETB-CE-FF	JFS336-ETB-CE-FF
JFS348-ETB-CE-FF	JFS372-ETB-CE-FF	JFS12-ECB-SF	JFS12-ECV-SF	JFS12-ETB-SF
JFS12-ETV-SF	JFS24-ECB-SF	JFS24-ECV-SF	JFS24-ETB-SF	JFS24-ETV-SF
JFS36-ECB-SF	JFS36-ECV-SF	JFS36-ETB-SF	JFS36-ETV-SF	JFS48-ECB-SF
JFS48-ECV-SF	JFS48-ETB-SF	JFS48-ETV-SF	JFS72-ECB-SF	JFS72-ECV-SF
JFS72-ETB-SF	JFS72-ETV-SF	JFS512-ECB	JFS512-ECV	JFS512-ETB
JFS512-ETV	JFS524-ECB	JFS524-ECV	JFS524-ETB	JFS524-ETV
JFS536-ECB	JFS536-ECV	JFS536-ETB	JFS536-ETV	JFS548-ECB
JFS548-ECV	JFS548-ETB	JFS548-ETV	JFS572-ECB	JFS572-ECV
JFS572-ETB	JFS572-ETV	JFS336-ETP-SF	JFS518-ETB-CE-C	JFS536-ETB-CE-FF
