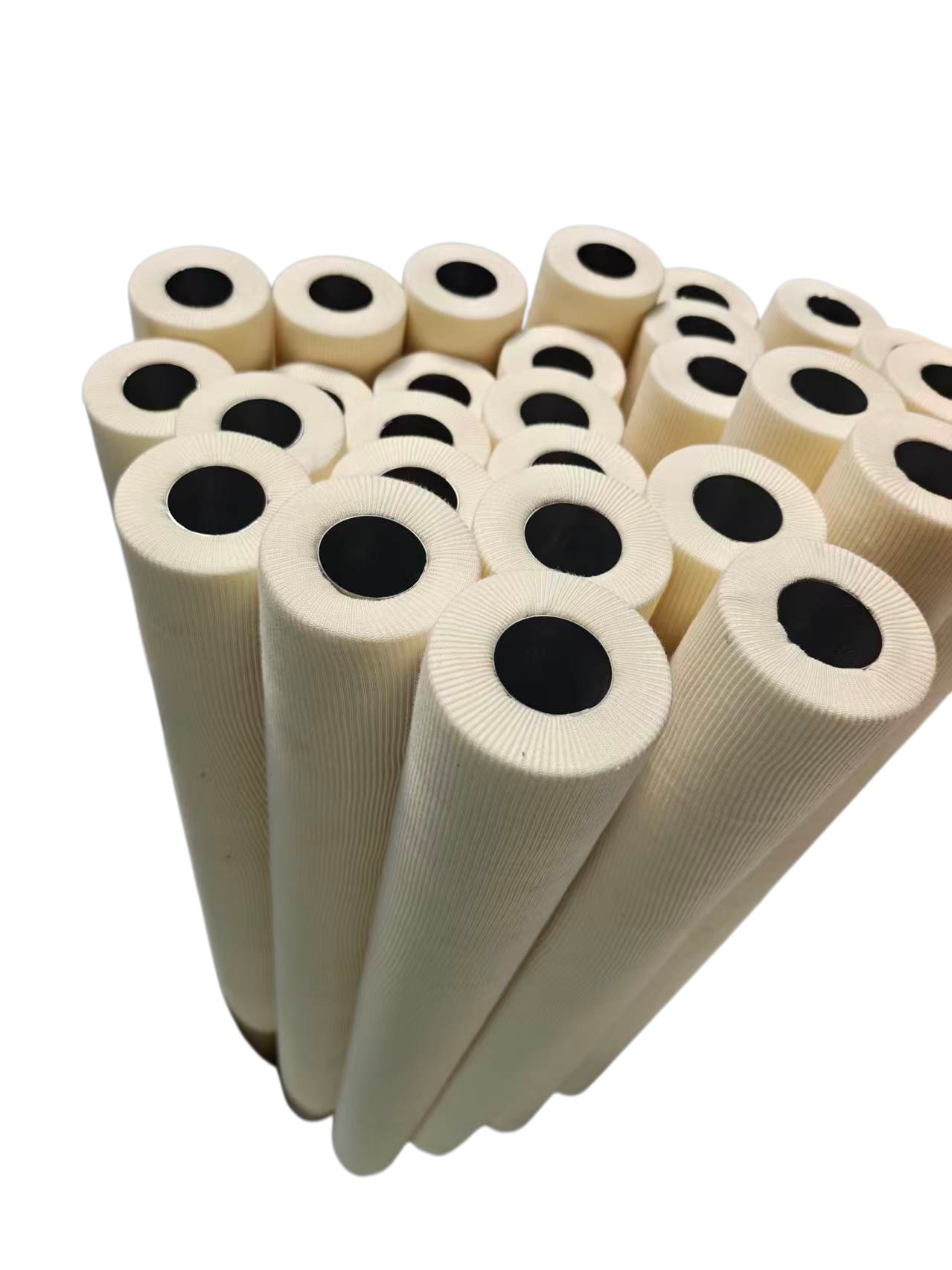

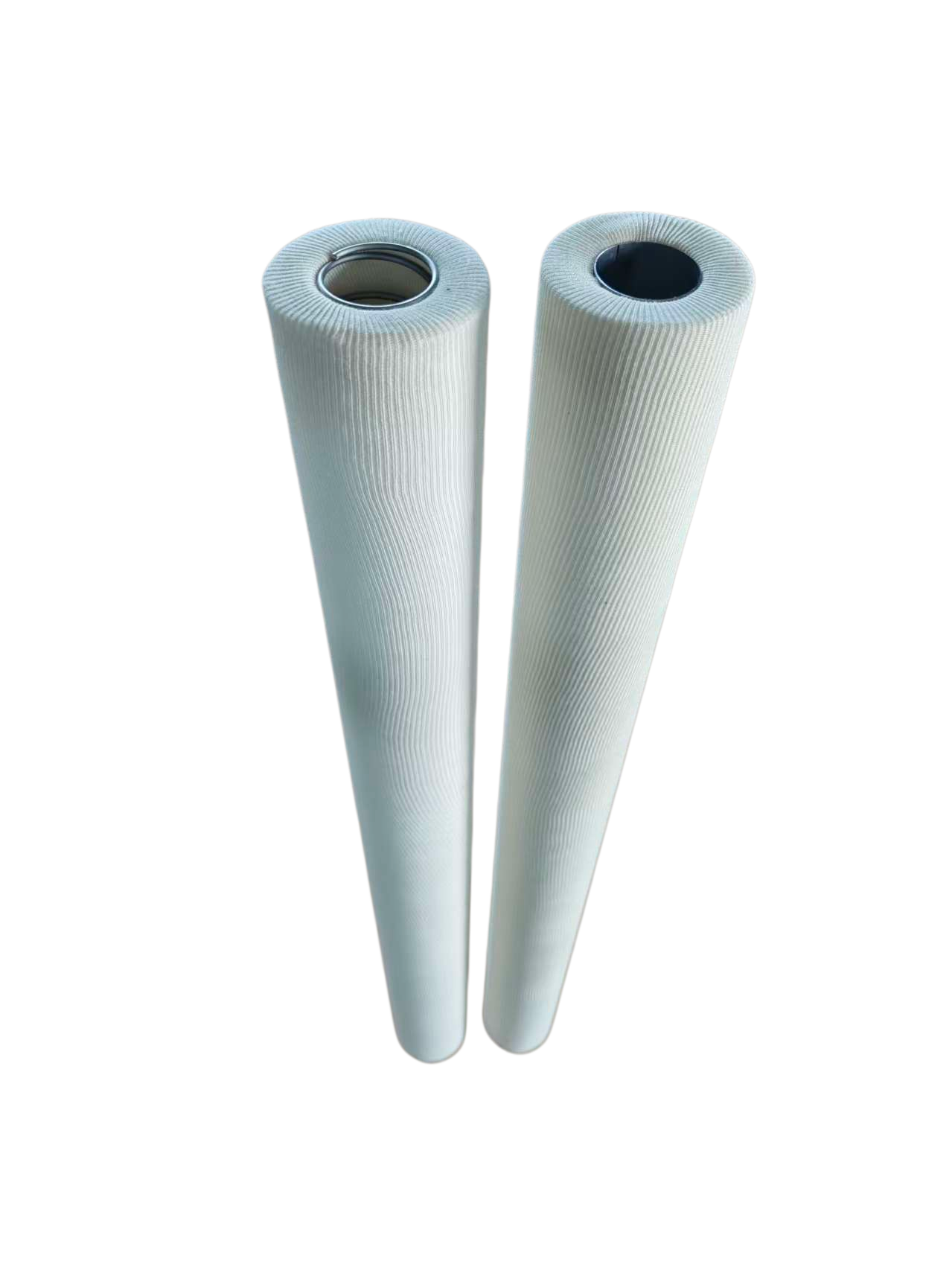

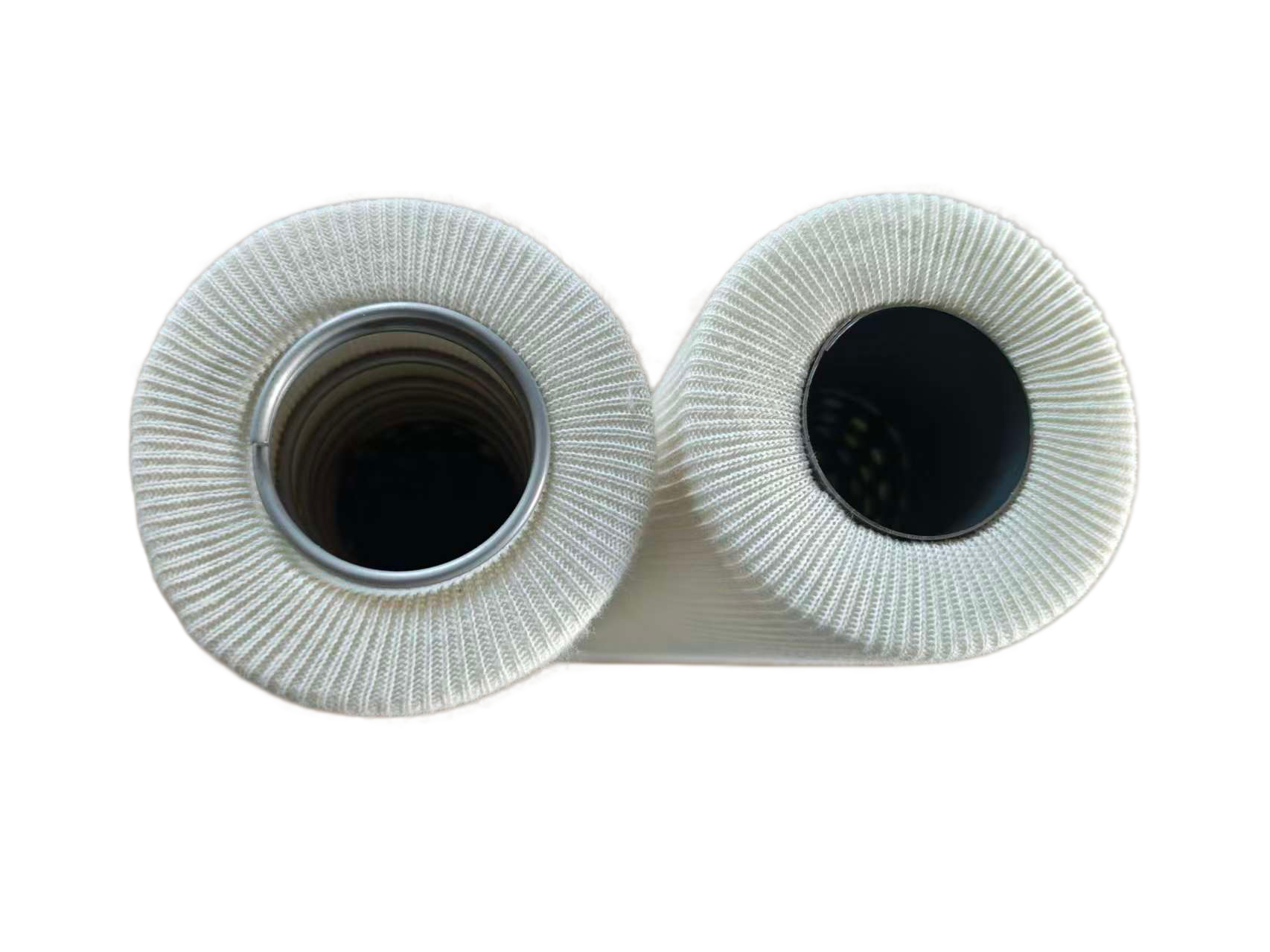

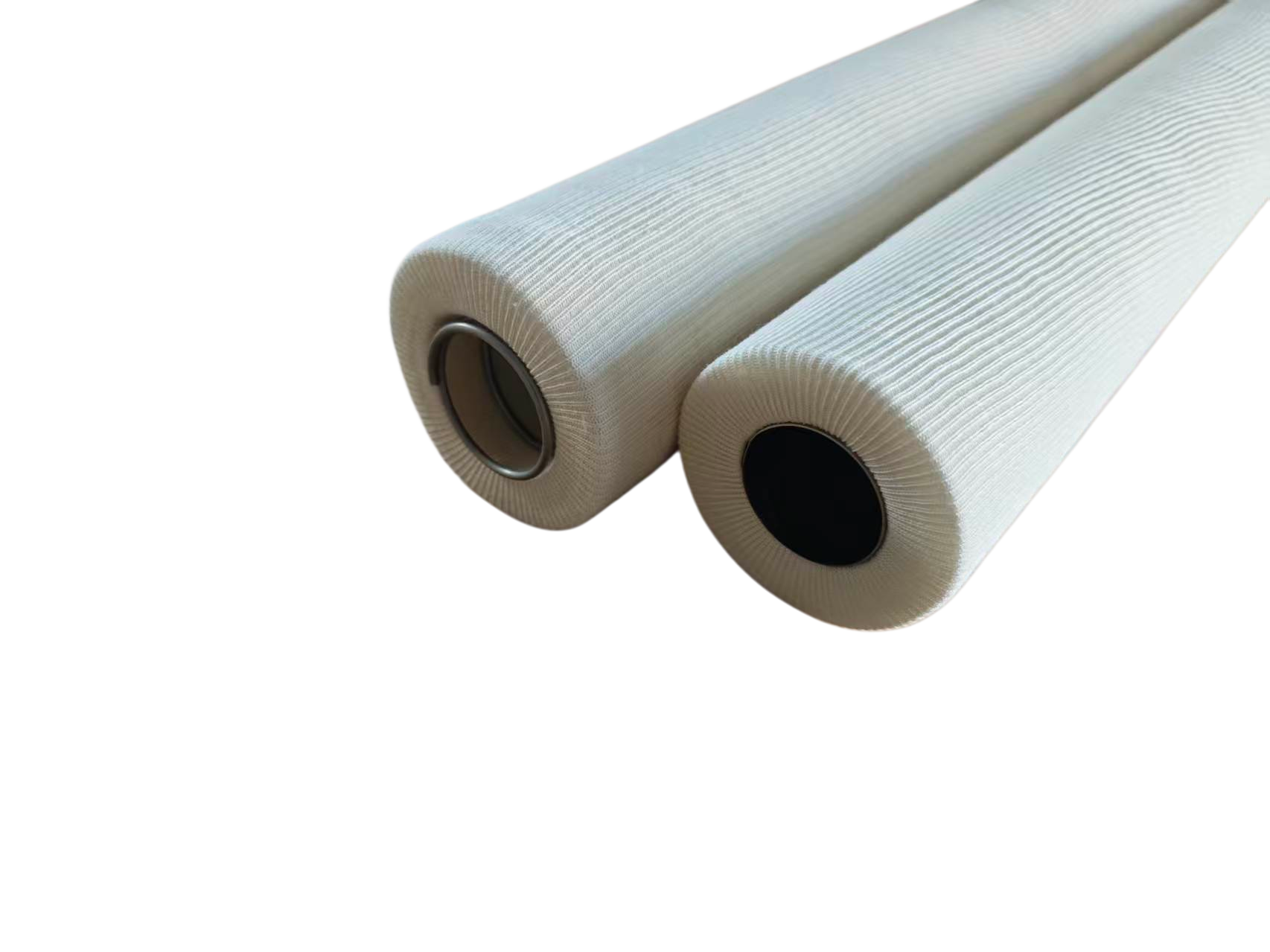

Equivalent Rolled Depth Cartridge for Amine, TEG Glycol & Gas Coalescing Applications

Equivalent Rolled Depth Cartridge for Amine, TEG Glycol & Gas Coalescing Applications - thumbnail

Equivalent Rolled Depth Cartridge for Amine, TEG Glycol & Gas Coalescing Applications

OD 3 inch

Height 18.6/36.6 inch

End caps DOE/

Filter layer Cotton/Synthetic/Excelsior Blend

Filtration rate 1, 3, 5, 10, 20, 50μm μm

Working temperature

Skeleton Tin-Plated Steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

Meitong Filter provide high-performance filtration solutions for natural gas processing systems, including amine sweetening units, glycol dehydration units, and natural gas coalescing applications. Our filter elements are engineered to effectively remove solid contaminants, liquid aerosols, hydrocarbons, and moisture carryover to improve equipment reliability and extend system service life.

Manufactured with advanced filtration media—such as borosilicate glass fiber, polypropylene, polyester, PTFE membrane, and activated carbon—our filter cartridges deliver exceptional filtration efficiency, low pressure drop, high dirt-holding capacity, and outstanding chemical compatibility for demanding oil and gas environments.

Application

Amine Sweetening Units: Rich/Lean amine filtration to remove iron sulfide particulates and hydrocarbon degradation products.

TEG Dehydration Systems: Glycol filtration before the reboiler to prevent fouling and heating element burnout.

Natural Gas Coalescing & Separation: Removal of liquid aerosols, fine mists, and hydrocarbon carryover from natural gas streams.

Protection of Critical Equipment: Guards reboilers, heat exchangers, amine pumps, and compressors against abrasive wear.

Specifications

Parameter	Specification
Outer Diameter	2.5/ 3.5 /6 inch
Height	10/12/ 20/24 /30 /36 /40 /60/ 72 inch
Core Material	Polypropylene / Stainless Steel (304 / 316L)
Filter material	Glass Fiber, Polypropylene
O-ring/Seal/Gasket Material	Viton (FKM), EPDM, PTFE
End caps	Polypropylene / Stainless Steel (304 / 316L)
Temperature	Up to 120°C (248°F) for PP 200°C+ for Glass Fiber or Stainless Steel
Maximum Differential Pressure	3.5 – 4.2 bar
Filtration Accuracy	1, 3, 5, 10, 20, 50μm

If you are interested in this filter, please contact us to get the price.

Features

Superior Contaminant & Aerosol Removal: High dirt-holding capacity and precise micron ratings keep your amine loops, TEG units, and gas streams clean.

Anti-Foaming & Anti-Fouling Protection: Removes fine particulates, iron sulfides, and hydrocarbon degradation products that cause costly foaming in absorber towers and fouling in reboilers.

Chemical & Thermal Compatibility: Built with high-grade polypropylene, fiberglass, and corrosion-resistant cores to withstand harsh chemical environments and high operating temperatures.

Extended Solvent & Equipment Lifespan: Maintains fluid and gas purity, reducing amine/glycol solvent replacement costs and protecting downstream pumps and compressors.

Low Differential Pressure: Optimized element design ensures maximum flow rates, minimizing downtime and energy consumption.

Model Number

WC-318-C-5	WC-318-C-25	WC-318-C-50	WC-318-C-75	WC-336-C-2-5
WC-336-C-5	WC-336-C-10	WC-336-C-25	WC-336-C-50	WC-336-C-75
WC-336-O-10
