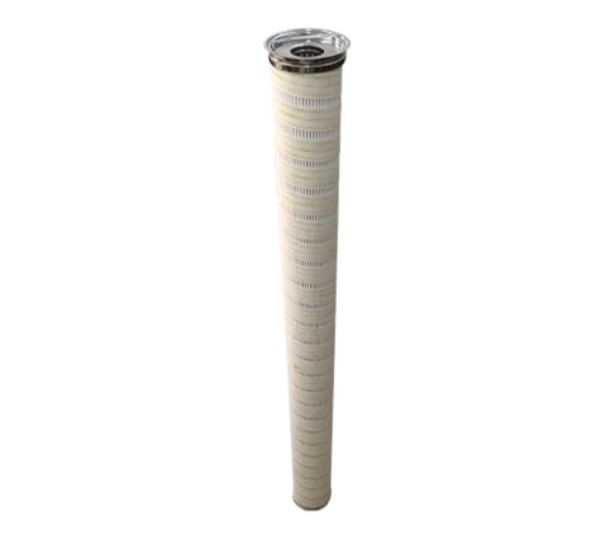

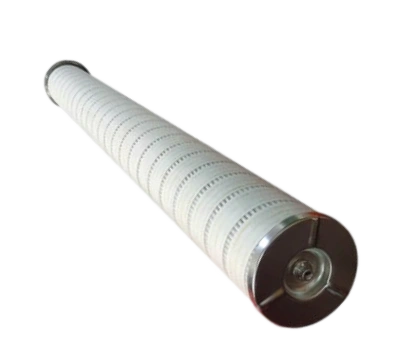

Replacement Cartridge for PAL-L Coalescers LCS2B1AH

Name: Replacement Cartridge for PAL-L Coalescers LCS2B1AH
Brand: MeiTong Filtration
SKU: 41
Availability: InStock

Replacement Cartridge for PAL-L Coalescers LCS2B1AH - thumbnail

Replacement Cartridge for PAL-L Coalescers LCS2B1AH

OD 6 inch

Height 20 /40 /6 inch

End caps Polypropylene / SS 304/316 (optional)

Filter layer Fiberglass

Filtration rate 1–100 (customizable) μm

Working temperature 66℃/150F

Skeleton Epoxy Potted Stainless Steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

Meitong Filter manufactures high-performance replacement coalescer cartridges designed as alternatives to Pall LCS2B1AH coalescer elements.

The replacement LCS2B1AH coalescer cartridge is engineered for liquid-liquid separation applications where efficient removal of dispersed water, emulsified liquids, and fine contaminants is required. It combines advanced coalescing media technology with robust construction to provide stable separation performance, long service life, and reliable operation in demanding industrial environments.

Pall LCS2B1AH is a 20-inch liquid-liquid coalescer element designed for high-volume applications involving entrained water and difficult separation conditions. It utilizes specialized glass fiber coalescing media to promote droplet growth and separation efficiency.

Application:

Oil & Gas Industry: compatible with refined products All gasolines/ Diesel/ Kerosene/ Lube oils/ Aromatics/Petrochemicals/LPG

Fuel teatment systems
Hydrocarbon purification
Oil-water separation systems
Refinery process filtration

Chemical Processing

Solvent purification
Process liquid separation
Emulsion breaking systems

Power Generation

Fuel oil treatment
Turbine fuel conditioning

Specifications

Parameter	Specification
Hardware Material	Epoxy Potted Stainless Steel
O-ring/Seal/Gasket Material	Fluoropolymer ElastomerO-Ring/NBR, fluoro rubber
Inner Diameter	3.75 in (9.53 cm)
Height	20in/40 in /6in
Filter material	Fiberglass
End caps	Polypropylene / SS 304/316 (optional)
Temperature	66℃/150 F
Maximum Differential Pressure	15 psid
Filtration Accuracy	1–100μm (customizable)

If you are interested in this filter, please contact us to get the price.

Features

Efficient Liquid-Liquid Separation: uses a high-efficiency coalescing medium that captures fine dispersed liquid droplets and combines them into larger droplets for easier downstream separation.Typical contaminants removed: Free water/ Emulsified water/ Hydrocarbon droplets/ Liquid contaminants/ Fine particulate contamination.

Advanced Coalescing Media: The filter element incorporates a high-performance glass fiber coalescing structure designed for:

High liquid holding capacity; Excellent droplet coalescence; Low initial pressure drop; Stable separation efficiency

The fine pore structure of the coalescing medium enables effective separation even in challenging liquid systems with low interfacial tension characteristics.

Meitong Filter provides compatible replacement elements for equivalent applications: Pall PhaseSep® Coalescer & Pall AquaSep® Plus Coalescer. Manufactured according to OEM dimensional requirements and are available with customized: Filter media , Seal materials , End cap configurations , Packaging requirements

Model Number

Moder Number
LCS2B1AH	LCS4B1AH	LCS6B1AH	LCS2H1AH	LCS2H2HH
LCS2H1AH1	LCS4H1AH	LCS4H1AH1	LCS4H1AH11	LCS4H2HH
LCS4H2HH1	LCS4H2HH11	LCS06H1HH	LCS06H2AH
