Replacement PECO PP Pleat filter PS-240-FC-10-LB for petrochemical processing, water treatment, general industrial fluid management

The Parker TruPleat PS-240-FC-10-LB Liquid Filter Cartridge is a premium high-efficiency pleated synthetic filter cartridge engineered for demanding industrial liquid clarification and particulate removal. Featuring 100% thermally bonded polypropylene media, end caps, and core construction, the PS-240-FC-10-LB provides outstanding chemical compatibility across a wide pH range (2–14) without the use of binders, adhesives, or surfactants.Designed with a 10-micron rating and a 40-inch length, this high-capacity pleated filter maximizes effective filtration surface area, resulting in superior dirt-holding capacity, low initial pressure drop, and extended service life. Its Single Open End (SOE) configuration featuring a 222 O-ring seal and fin end ensures a positive, bypass-free seal in standard industrial filter housings.  Whether deployed in petrochemical processing, water treatment, or general industrial fluid management, the Parker TruPleat™ PS series delivers reliable performance and cost-effective fluid purification.

Recommended Applications

Oil & Gas Processing

• Amine and glycol filtration

• Liquid filtration in natural gas processing systems

• Produced water filtration

• Well completion and injection fluids filtration

• Removal of solid contaminants from process liquids

Chemical & Industrial Processing

• Process water and D.I. water filtration

• Solvents, alcohols, acids and alkaline solutions

• Chemical process fluids

• Industrial liquid filtration applications

Water Treatment

• R.O. pre-filtration

• Industrial water filtration

• Bottle-washing water filtration

• Process water purification

Power Generation & Lubrication Systems

• Turbine lubricating oils

• Hydraulic oils

• Compressor oils

• Critical equipment lubrication systems

Food & Beverage

• Process water

• Liquid ingredients

• Flavorings

• Beer and wine

• Vinegar filtration

Synthetic Pleated Filter Media:Parker TRU-PLEAT™ Series PS cartridges utilize high-quality synthetic filter media, including polypropylene and polyester options, providing excellent chemical compatibility and reliable particulate removal performance for various industrial liquid applications.

High Filtration Efficiency & Dirt Holding Capacity:the pleated media structure provides:

increased filtration surface area, high dirt holding capacity , stable filtration efficiency, extended service life which helps maintain low pressure drop during operation.

Thermally Bonded Construction: design eliminates the need for adhesives, clips or fasteners, improving structural integrity and reducing the risk of contamination or bypass.

Wide Chemical Compatibility: Available synthetic media materials provide compatibility with a wide range of industrial fluids, including:Water-based fluids ,Hydraulic oils ,Lubricants ,Chemicals ,Solvents ,Process liquids

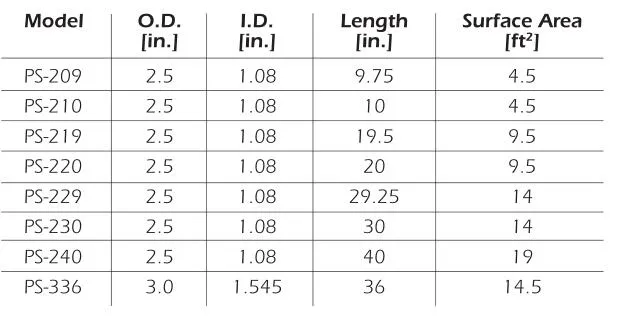

Multiple Micron Ratings Available: available in various filtration ratings (0.5,1,5,10,20,40,70μm ）

Reliable Industrial Performance:Designed for  Low pressure drop , high flow capability ,long operating life ,consistent filtration performance

OEM Equivalent Replacement Capability: MeiTong manufactures replacement cartridges compatible with Parker TRU-PLEAT™ PS series, offering:Equivalent dimensions ,Compatible filtration performance ,Customized micron ratings ,OEM drawing and sample-based production

High Dirt-Holding Capacity: Optimized pleated synthetic design provides maximum surface area for high flow rates and low pressure differential.

100% Thermally Bonded Construction: Free of additives, binders, and glues to eliminate extractables and process fluid contamination.

Broad Chemical Compatibility: All-polypropylene hardware and media tolerate aggressive acids, bases, and aggressive chemical solutions (pH 2–14).

Bypass-Free Sealing: SOE 222 O-ring configuration guarantees an airtight, leak-proof seal inside the filter vessel.

Long Service Life: High contaminant loading capability extends replacement intervals, reducing overall operating costs and downtime.
