Replacement Jonell JPMP 2530-05AB-D Liquid Filter Cartridge

Name: Replacement Jonell JPMP 2530-05AB-D Liquid Filter Cartridge
Brand: MeiTong Filtration
SKU: 291

Replacement Jonell JPMP 2530-05AB-D Liquid Filter Cartridge - thumbnail

Replacement Jonell JPMP 2530-05AB-D Liquid Filter Cartridge

LiquiPleat P Series Polypropylene Synthetic Filter Elements, 2.5-in. OD x 40-in. Length, 10 Micron, 99% Eff., EPR Gaskets, 222 O-Ring/Closed, Rigid Outer Cage

OD 2.5 inch

Height 30 inch

End caps Double Open End，Spring / Extension，

Filter layer Polypropylene

Filtration rate 0.5, 1, 2,10, 20,25, 40, 70μm at 99.98% efficiency μm

Working temperature 240ºF / 116ºC

Skeleton Stainless Steel.Carbon Steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

Our JPMP replacement filter cartridges provide an aftermarket option for selected Jonell polypropylene liquid filtration elements. They are intended for industrial processes that require the removal of suspended solid particles from compatible liquids.

The pleated polypropylene media provides an extended filtration surface within a compact cartridge format. This construction is suited to applications where the target particle size, available housing space and process flow must be considered together.

A replacement filter should be selected by its complete configuration. Cartridge length, outside diameter, internal opening, end connection and gasket material all influence installation and sealing. The micron rating must also be reviewed together with its stated removal efficiency and test basis.

Whether you are sourcing a single replacement element or reviewing an industrial filter cartridge supply program, start with the full JPMP part number and the operating conditions. This allows the proposed alternative to be checked against the existing filter housing and filtration requirement.

Application

• Condensate

• Amine & Glycol

• Lubricants

• Acids & Alkali

• Solvents

• Catalyst Disposal

• Inks

• Injection & Lubricants

• Adhesives

• Fabric Coatings

• Paints

• Dyes

• Product Polishing

• Bulk Chemical Filtration

• Waste Water

• Injection water

• RO Water

• Final product filtration

Specifications

Outer Diameter	2.5/2.63/2.75/3 inch
Height	09/10/20/30/40/47/56/72 inch
Core Material	Tinned Steel
Filter material	Polypropylene
O-ring/Seal/Gasket Material	Buna, EPR, Viton, Silicone, Teflon
End caps	Tinned Steel, Polyester
Temperature	240ºF / 116ºC
Maximum Differential Pressure	20 psid / 1.378 bar
Filtration Accuracy	0.5, 1, 2,10, 20,25, 40, 70μm at 99.98% efficiency
Flow Direction	Outside to Inside

If you are interested in this filter, please contact us to get the price.

Features

Pleated polypropylene media: Intended for particulate removal in compatible liquid streams.

· Extended filtering surface: Pleated construction increases the media area within the cartridge envelope.

· Configuration-based selection: Review dimensions, end caps, core construction and seals together.

· Micron-specific filtration: Select the particle rating and efficiency appropriate to the process.

· Aftermarket replacement option: Identify alternatives using the complete original part number.

· Industrial maintenance focus: Suitable for evaluating planned filter changes and replacement inventory.

Model Number

JPMP-336-05FB-S1-M	JPMP-3862-70AE-PP	JPMP2510-00AE-O-R	JPMP2510-00AE-OR	JPMP 2520-00AE-DR
JPMP 2520-00AE-D-R	JPMP 2520-0.45FE-DR	JPMP 2520-0.45FE-D-R	JPMP2520-01-AB-DR	JPMP2520-01-AB-D-R
JPMP2520-045-FE-DR	JPMP2520-045-FE-D-R	JPMP2520-05AE-O	JPMP2520-20-AB-DR	JPMP2520-20-AB-D-R
JPMP2520-50FB-D	JPMP2530-00-AV-D	JPMP 2530-045AE-FR	JPMP 2530-045AE-F-R	JPMP 2530-05AB-D
JPMP2530-30AB-D	JPMP 2540-005-CE-FR	JPMP 2540-005-CE-F-R	JPMP 2540-05AB-DR	JPMP 2540-05AB-D-R
JPMP 2540-05AB-OR	JPMP 2540-05AB-O-R	JPMP 2540-10-CE-FR	JPMP 2540-10-CE-F-R	JPMP2540-10AB-F
JPMP 2540-10CE-OR	JPMP 2540-10CE-O-R	JPMP 2540-30AE-S2-SC-R	JPMP 336-02AE-S1-M	JPMP 336-05AB-S1-M
JPMP 336-05AE-S1-M	JPMP 336-10AB-S1-M	JPMP 336-10AE-S1-M	JPMP 3862-10CB-PP	JPMP 3862-15CB-PT
JPMP 620-05AE-W	JPMP 6326G-10F-P-SR	JPMPD 6326G-10F-P-SR	PMP2510-00AE-OR

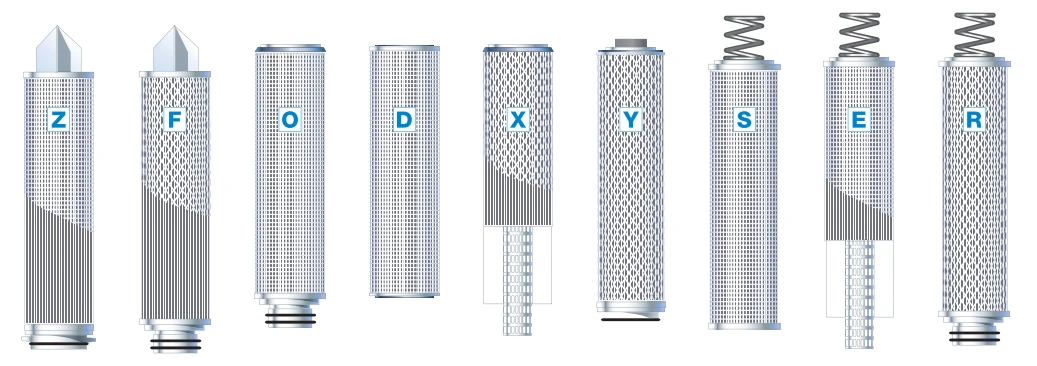

End Cap Style jonell liquid end cap style .webp End Cap Style
