Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel

Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel
Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel
Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel
Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel - thumbnail
Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel - thumbnail
Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel - thumbnail

Replacement Pleated Media Filter Cartridges Velcon FO-614PLF for Aviation Fuel

OD Standard/Customized inch
Height Standard/Customized inch
End caps Aluminum/ Stainless steel
Filter layer Microfiberglass,Filter pape
Filtration rate 1, 5, 10, 25 μm
Working temperature 250°F (121.1°C)
Skeleton Aluminum/ Stainless steel

Send Email WhatsApp
Share:

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

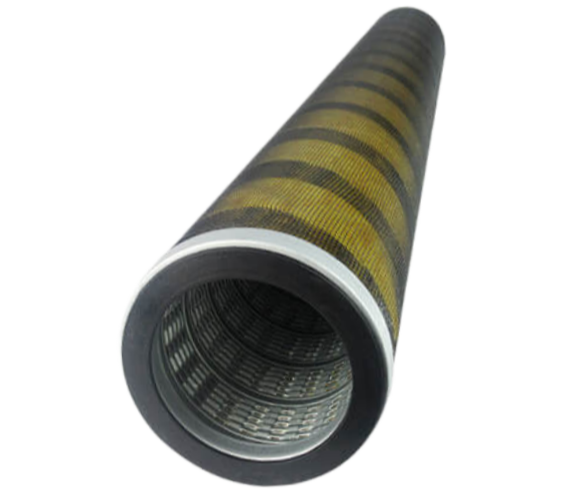

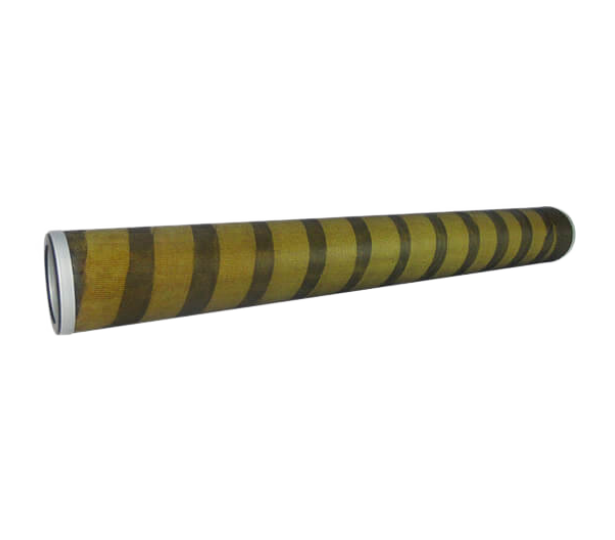

Parker Velcon FO Series is a micronic aviation fuel filter cartridge designed for the removal of solid contaminants from aviation fuels such as jet fuel, kerosene and aviation gasoline (AVGAS). Unlike coalescer/separator cartridges, the FO Series is mainly used for particle removal, protecting aircraft fueling systems, fuel dispensers and downstream equipment from dirt, rust and other solid contamination.


Application

Turbine fuel filtration

Diesel fuel purification

Industrial fuel system

Airport fueling systems

Aircraft refueling trucks

Fuel storage terminals

Aviation fuel distribution systems


Specifications

ParameterSpecification
Hardware MaterialAluminum/ Stainless steel
O-ring/Seal/Gasket Material Buna-N, Viton®, EPDM
Outer Diameter Standard/Customized
Height Standard/Customized
Filter material Microfiberglass,Filter paper
End capsAluminum/ Stainless steel
Temperature250°F (121.1°C)
Maximum Differential Pressure15PSID
Filtration Accuracy1, 5, 10, 25μm

If you are interested in this filter, please contact us to get the price.

Features

High Efficiency Solid Contaminant Removal:Designed to remove dirt particles , rust particles, dust contamination ,mechanical debris, solid impurities in aviation fuel.

Pleated Filter Media Design: With pleated paper media &fiberglass depth media, the pleated structure increases filtration surface area, improving: dirt holding capacity , service life ,flow performance ,pressure drop characteristics.

Aviation Fuel Compatibility: Jet A ,Jet A-1 ,aviation gasoline (AVGAS) ,kerosene-based fuels, turbine fuels.

High-precision filtration: It can usually filter particles to the micron level (the specific accuracy needs to be checked in the technical documents, and similar models are mostly 3-10 microns).

Structure: Metal end caps (usually aluminum or stainless steel) and sealing rings are designed to resist high pressure and fuel corrosion.


Model Number

Moder Number
FO-412PL2FO-412PL5FO-418PL5FO-418PL15FO-512PL1/2
FO-512PL05FO-512PL25FO-614A1FO-614A1TBFO-614A2
FO-614A2TBFO-614A3FO-614A3TBFO-614A5FO-614A5TB
FO-614PLF½FO-614PLF1FO-614PLF2FO-614PLF5FO-614PLF5M
FO-614PLF10FO-614PLF15FO-614PLF15MFO-614PLF25FO-614PLF25M
FO-614PLF75FO-629A1FO-629A1TBFO-629A2FO-629A2TB
FO-629A3FO-629A3TBFO-629A5FO-629A5TBFO-629PLF1/4
FO-629PLF1/2FO-629PLF1FO-629PLF1/2TBFO-629PLF1TBFO-629PLF2
FO-629PLF2TBFO-629PLF5FO-629PLF5TBFO-629PLF10FO-629PLF20
FO-629PLF25FO-629PLF25TBFO-644A1FO-644A1TBFO-644A2
FO-644A2TBFO-644A3FO-644A3TBFO-644A5FO-644A5TB
FO-644PLF1/2FO-644PLF1/2TBFO-644PLF1/4TBFO-644PLF1MFO-644PLF1TB
FO-644PLF2MFO-644PLF2TBFO-644PLF5MFO-644PLF5TBFO-644PLF10M
FO-644PLF10TBFO-644PLF15MFO-644PLF25MFO-644PLF25TBFO-656A1
FO-656A1TBFO-656A2FO-656A2TBFO-656A3FO-656A3TB
FO-656A5FO-656A5TBFO-656PLF1MFO-656PLF1/2TBFO-656PLF1TB
FO-656PLF2TBFO-656PLF5TBFO-656PLF25TBFO-718PLP3FO-718PL1/2
FO-718PL01FO-718PL02FO-718PL05FO-718PL10FO-718PL15
FO-718PL25FO-718PL50FO-736PLP3FO-736PL1/2FO-736PL05
FO-736PL15FO-822PLP3FO-822PL1/2FO-822PL05FO-829PL05
FOH-644PLF1FOH-644PLF1/2FOH-644PLF1TBFOH-644PLF2TBFOH-644PLF5
