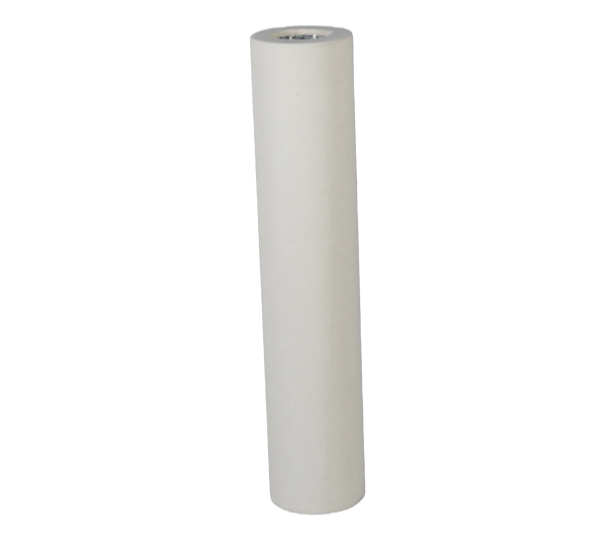

Replacement PECO PCHG-336 Dry Gas Filter-Separator Cartridge

Name: Replacement PECO PCHG-336 Dry Gas Filter-Separator Cartridge
Brand: MeiTong Filtration
SKU: 32
Availability: InStock

Replacement PECO PCHG-336 Dry Gas Filter-Separator Cartridge - thumbnail

Replacement PECO PCHG-336 Dry Gas Filter-Separator Cartridge

OD 3 /4.5 /5.5 inch

Height 12 /18 /24 /36 /72 inch

End caps Plated Steel (Optional)

Filter layer Polyester or Polypropylene

Filtration rate 0.1, 0.3, 0.5, 1, 5, 10 μm

Working temperature Polypropylene 180ºF / 82ºC ; Polyester 240ºF / 116ºC

Skeleton Plated Stee, coreless

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

High Efficiency Natural Gas Filter Separator Cartridge for PECO PCHG Series Replacement

Meitong Filter manufactures replacement PECO PCHG-336 dry gas filter-separator cartridges designed for natural gas filtration applications where efficient removal of solid contaminants and deformable particles is required.

The PECO PCHG-336 replacement cartridge is engineered as an equivalent alternative to OEM PECO PCHG Series filter-separator elements, providing reliable filtration performance, dimensional compatibility, and cost-effective replacement solutions for industrial gas filtration systems.

Designed for natural gas filter separator vessels, this dry gas filter-separator cartridge combines depth filtration technology with high dirt holding capacity to remove contaminants such as dust, pipe scale, rust particles, iron sulfide, sand, and other solid impurities from gas streams.

Application:
Protecting Critical Assets: Compressors, turbines, pumps, valves, regulators, meters, and burners.

Pipeline dehydration, gas storage,Fuel gas conditioning, Gas pressure regulating,Industrial gas purification, power generation,Small-scale gas filtration, residential use,Natural gas processing, pipeline filtration,Industrial gas purification, power generation,Petrochemical refining, gas distribution，Refineries & Petrochemical Plants，Dehydration Units (e.g., TEG)，Compressor/ Metering Stations.

Specifications

Parameter	Specification
Hardware Material	Plated Steel, coreless
O-ring/Seal/Gasket Material	None (Standard), Buna-N, EPDM, Viton
Outer Diameter	3 /4.5 /5.5inch
Height	12 /18 /24 /36/72inch
Filter material	Polyester or Polypropylene
End caps	Plated Steel (Optional)
Temperature	Polypropylene 180ºF / 82ºC Polyester 240ºF / 116ºC
Maximum Differential Pressure	50PSID
Filtration Accuracy	0.1, 0.3, 0.5, 1, 5, 10μm

If you are interested in this filter, please contact us to get the price.

Features

Designed for PECO Series 75 & Series 85 Filter-Separator Vessels: Direct replacement solution for PECO PCHG Series filter cartridges with reliable installation compatibility.

Dry Gas Filter-Separator Cartridge for Natural Gas Applications: Efficient contaminant removal for cleaner gas and improved downstream equipment protection.

Patented Depth Filtration Technology: Advanced depth filtration structure provides higher contaminant capture capacity compared with conventional filter cartridges.

Radial, Axial and Helical Flow Paths: Unique three-dimensional flow path improves filtration efficiency while maintaining excellent flow performance.

High Dirt Holding Capacity & Extended Service Life: Longer service life and fewer change-outs reduce maintenance requirements and operating costs.

Gradient density structure provides high dirt holding capacity

High Flow Capacity with Low Pressure Drop: Optimized flow channels deliver high throughput with reduced pressure loss

Synthetic Media Construction:Synthetic construction provides a durable and environmentally friendly alternative to traditional fiberglass cartridges.

Our replacement cartridges offer:

✔ OEM equivalent dimensions
✔ Reliable natural gas filtration performance
✔ High dirt holding capacity
✔ Competitive replacement cost
✔ Custom filtration solutions
✔ Technical support for OEM cross reference

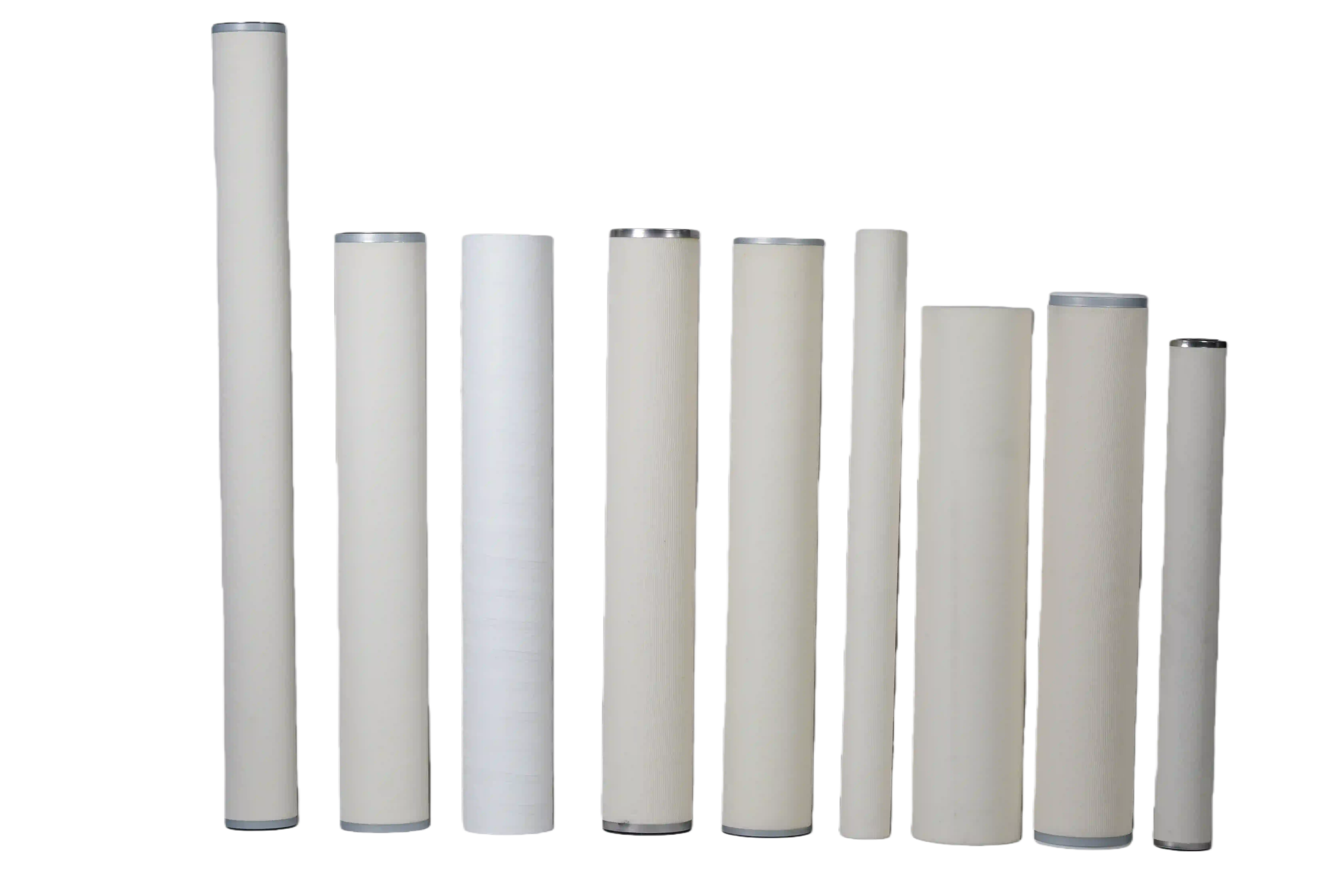

Model Number

Moder Number
PCHG-12	PCHG-24	PCHG-36	PCHG-72	PCHG-312
PCHG-318	PCHG-324	PCHG-336	PCHG-336-A	PCHG-336-B
PCHG-336-C	PCHG-336-C-B	PCHG-336-C-CE	PCHG-336-C-CE-B	PCHG-336-CE-B
PCHG-336-SCW	PCHG-372	PCHG-372-C	PCHG-372-C-B	PCHG-372-C-CE
PCHG-372-C-CE-B	PCHG-372-CE	PCHG-372-SCW	PCHG-372-SCW-B	PCHG-372-SCW-CE
PCHG-372-SCW-CE-B	PCHG-536	PCHG-536-CE	PCHG-536-CE-B	PCHG-536-SCW
PCHG-536-SCW-CE-B	PCHG-572
