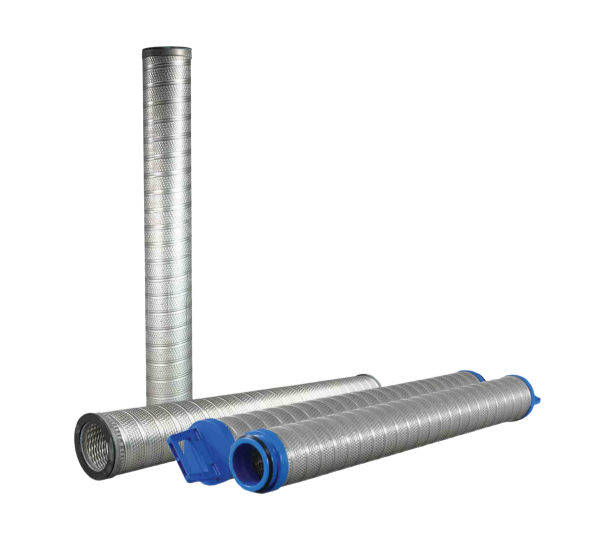

Industrial Filter Cartridges for Gas Process Filtration for Jonell JQC-3636

OD 4.5 inch

Height 28, 36, 43, 72, 79 inch

End caps Nylon

Filter layer Depth style polyester, depth style polypropylene

Filtration rate 0.3, 0.5, 1, 5, 10, 20, 50, 70μm μm

Working temperature Fiberglass: 240 deg F; Polypropylene: 180 deg F; Cotton: 300 deg F; Nylon: 325 deg F

Skeleton Tin Plated Steel or Stainless Steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

Quick-Change Series Filter Cartridges are developed as an extension of the GasPleat™ product line, delivering an optimal balance of solid contaminant retention and liquid pre-coalescing performance.

These cartridges feature a depth-style filtration structure, enabling high dirt holding capacity while effectively coalescing and removing liquid aerosols from gas streams.

Designed for tool-less installation, the Quick-Change series helps significantly reduce maintenance time and operational downtime.

With advanced design features such as rounded end caps, a wide ergonomic handle, and a high-durometer chevron gasket, these cartridges ensure a secure seal, prevent bypass, and maintain consistent filtration efficiency.

The Quick-Change series is fully compatible with PECO EZ-Align™ Series cartridges and fits Titan-Purasep™ filter housings, allowing easy installation without indexing requirements.

We warrants this part to meet or exceed OEM specifications, in Form, Fit, and Function,tested in accordance with ISO standards, with equivalent performance to original brands.

Application
Compressors, turbines, pumps, valves, regulators, meters, and burners,Pipeline dehydration, gas storage, Industrial gas purification, power generation, Small-scale gas filtration, residential use, Natural gas processing, pipeline filtration, Industrial gas purification, power generation, Petrochemical refining, gas distributior , Refineries & Petrochemical Plants, Dehydration Units (e.g., TEG), Compressor/ Metering Stations

Specifications

Parameter	Specification
Hardware Material	Core and Outerwrap: Tin Plated Steel or Stainless Steel
O-ring/Seal/Gasket Material	Standard: Buna Chevron Seal Options: Viton, EPDM, or Buna Orings
Outer Diameter	4.5”
Height	28”, 36”, 43”, 72”, 79”
Filter material	Depth style polyester, depth style polypropylene
End caps	Nylon
Temperature	Fiberglass: 240 deg F Polypropylene: 180 deg F Cotton: 300 deg F Nylon: 325 deg F
Maximum Differential Pressure	12 - 15 PSID
Filtration Accuracy	0.3, 0.5, 1, 5, 10, 20, 50, 70μm

If you are interested in this filter, please contact us to get the price.

Features

Direct Replacement Design

Direct Replacement Design:Fully compatible with PECO EZ-Align* series cartridges used in Titan Purasep* housings, enabling quick and tool-free installation while minimizing downtime.

User-Friendly Quick-Change Handling:Closed-end cap with an ergonomic handle design provides improved grip and easier cartridge change-out.

Reliable Sealing Performance: High-durometer chevron gasket ensures secure seating on the riser, preventing bypass and maintaining filtration efficiency.

Enhanced Chemical Compatibility: Optional O-ring materials available to suit a wide range of operating conditions and process fluids.

Versatile Media Configuration:Multiple filtration media and core options support both wet and dry gas applications, allowing tailored performance for specific process requirements.

Model Number

Moder Number
JQC328	JQC336	JQC343	JQC372	JQC379
JQC-3636-5E	JQC-3643-5E	JQC-3672-5E	JQC-3636-5ETB	JQC-3636-1ETB
JQC-3636-5ETB	JQC-3636-10ETV	JQC-3643-1ESV	JQC-3643-5GTB	JQC-3643-10PTB
JQC-3628-5NCE	JQC-3672-5ESV	JQC-3679-10GSV	JQC-3636-0.3GSV	JQC-3636-0.5GTB
JQC-3643-0.3ESV	JQC-3672-0.5PTB
