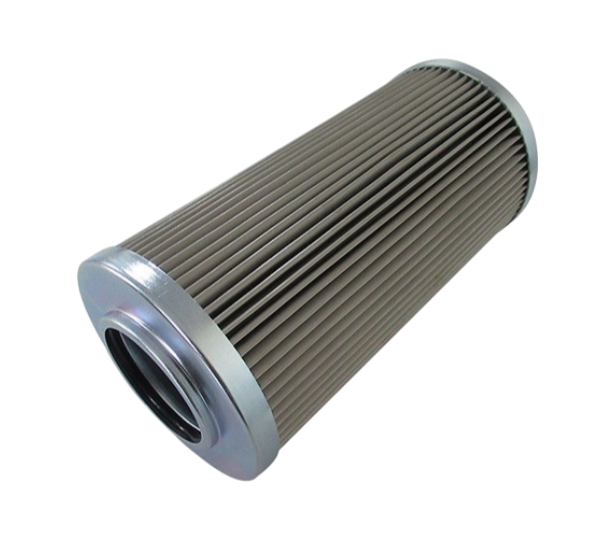

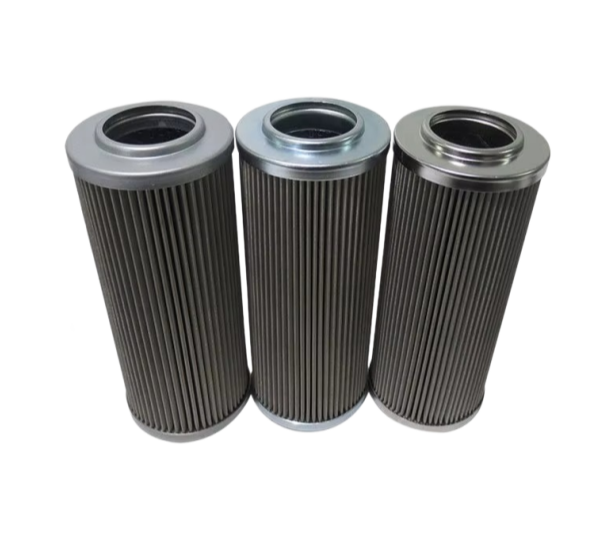

Replacement MP Filter CU250M10N

OD Standard/Customized inch

Height Standard/Customized inch

End caps Steel

Filter layer Fiberglass,Wire mesh,Paper

Filtration rate 3,6,10,16,25,60,90 μm

Working temperature -25 °C to +110 °C

Skeleton Aluminium,GF reinforced - Steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

MP Filtri filter elements are manufactured using high-quality glass fiber media, providing excellent filtration efficiency and dirt-holding capacity. They effectively remove solid particles and elastomer contaminants from the fluid, reducing wear on hydraulic components, improving system reliability, and ensuring stable and efficient operation of hydraulic and lubrication systems.

Application: Metallurgy, Petrochemical Industry,Petrochemical Industry,Textile Industry, Electronics & Pharmaceuticals,Thermal & Nuclear Power,Mechanical Processing Equipment,Railway & Power Generation,Automotive & Construction Machinery,Lifting & Handling Equipment,Heavy-Duty Hydraulic Equipment,High-Precision Control Systems,Automated Control Systems

Specifications

Parameter	Specification
Hardware Material	Aluminium,GF reinforced - Steel
O-ring/Seal/Gasket Material	NBR,Viton
Outer Diameter	Standard/Customized
Height	Standard/Customized
Filter material	Fiberglass,Wire mesh,Paper
End cap	Steel
Temperature	-25 °C to +110 °C
Maximum Differential Pressure	6 MPa (60 bar)
Filtration Accuracy	3,6,10,16,25,60,90μm

If you are interested in this filter, please contact us to get the price.

Features

High Filtration Performance: Offers uniform surface filtration with particle size retention ranging from 2 to 200 microns.
Durable Construction: Excellent resistance to corrosion, heat, pressure, and wear for long-lasting performance in demanding

conditions.

Reusable & Easy to Maintain: Can be cleaned and reused multiple times, eliminating the need for frequent replacement.

Wide Selection: Various types of filter elements available to meet diverse requirements.

Cost-Effective Alternative: Significant cost savings compared to expensive OEM brands.

Direct Replacement: Fully interchangeable with Pal filters; matches OEM fit, form, and function.

Factory Direct: Purchase hydraulic filters directly from the manufacturer.

Model Number


CU100A25NP01	CU100M25NP01	CU100P25NP01	CU100A10NP01	CU100M60NP01
CU100P10NP01	CU250A25NP01	CU250M25NP01	CU250P25NP01	CU250A10NP01
CU250M60NP01	CU250P10NP01	CU630A25NP01	CU630M25NP01	CU630P25NP01
CU630A10NP01	CU630M60NP01	CU630P10NP01	CU850A25NP01	CU850M25NP01
CU850P25NP01	CU850A10NP01	CU850M60NP01	CU850P10NP01	CU950A25NP01
CU950M25NP01	CU950P25NP01	CU950A10NP01	CU950M60NP01	CU950P10NP01

Didn't find your industry solution?

Consult our technical experts immediately for customized filtration solutions.

wenty-two years of expertise in reliable, automated industrial filtration, supported globally across 50+ countries.

Meitong Filtration was established in 2003 and is located in Bazhou City, Hebei Province, China. We are a professional manufacturer dedicated to the development and production of industrial Filtration and purification solutions.

Why Choose a Custom Pool Filter

22+ years of industrial filtration expertise.
Products exported to 50+ countries & regions.
Automated production with strict quality control.
Customized designs for various working conditions.
You source directly from the manufacturer. This means factory-direct pricing, maximum value, and no middlemen.
