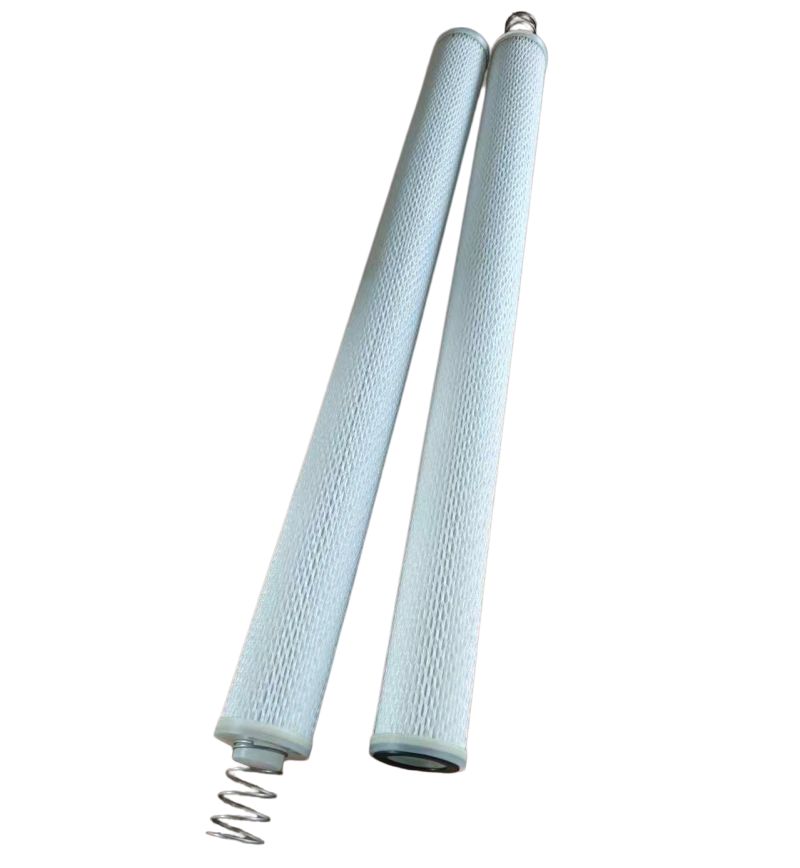

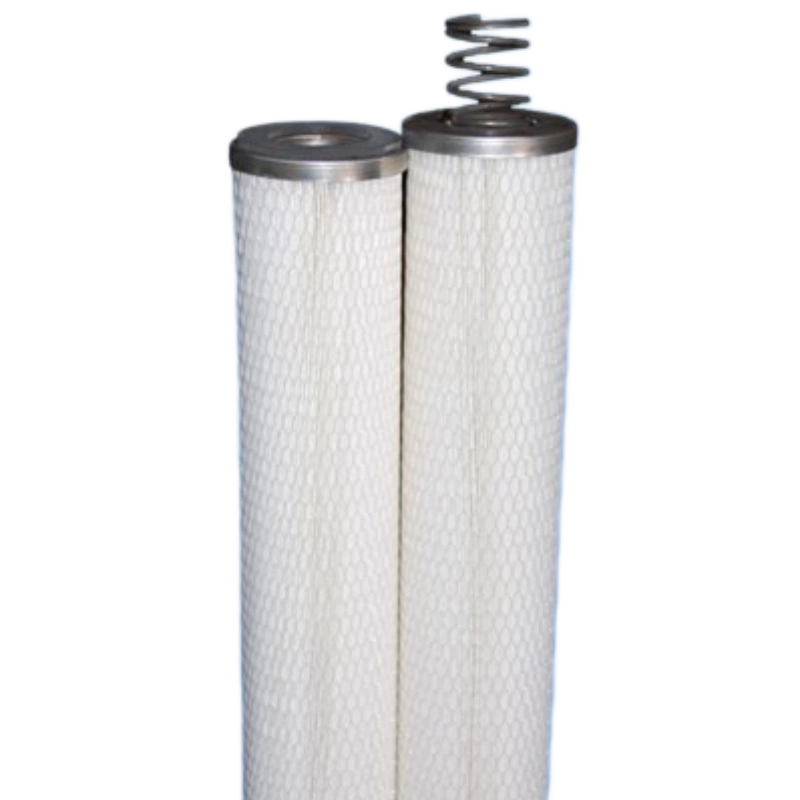

Replacement Jonell LiquiPleat JPME336-10A Liquid Filter Cartridge

Name: Replacement Jonell LiquiPleat JPME336-10A Liquid Filter Cartridge
Brand: MeiTong Filtration
SKU: 301

Replacement Jonell LiquiPleat JPME336-10A Liquid Filter Cartridge - thumbnail

Replacement Jonell LiquiPleat JPME336-10A Liquid Filter Cartridge

Meitong Filter manufactures high-performance replacement Jonell LiquiPleat E Series (JPME) filter cartridges, designed as direct replacements for original Jonell…

OD inch

Height inch

End caps

Filter layer

Filtration rate μm

Working temperature

Skeleton

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

Meitong Filter manufactures high-performance replacement Jonell LiquiPleat E Series (JPME) filter cartridges, designed as direct replacements for original Jonell polyester pleated filter elements.

The JPME series utilizes advanced pleated polyester synthetic media to provide efficient removal of solid contaminants in demanding liquid filtration applications. With high dirt holding capacity, excellent chemical compatibility, and customizable hardware configurations, these replacement filter elements are suitable for a wide range of industrial filtration systems.

Our replacement LiquiPleat E Series cartridges are manufactured according to OEM dimensional requirements and can be customized with different lengths, diameters, end cap configurations, sealing materials, and micron ratings to meet specific operating conditions.

Application

Oil & Gas Industry: Hydraulic oils, Lubrication oils, Process fluids, Glycol filtration, Amine filtration.Typical applications include: Oil production facilities, Gas processing plants, Refinery auxiliary system,Equipment protection filtration

Chemical Processing Industry: Suitable for filtration of chemical solutions, solvents, scids, alkalis, process liquids. Used in Chemical manufacturing, Petrochemical plants, Specialty chemical production

Water & Industrial Process Water: Process water filtration , Cooling water systems, RO pre-filtration, Industrial water purification

Power Generation: Helping protect critical equipment and improve operational reliability. Applied in Turbine lubrication systems, Hydraulic control systems, Cooling , water filtration ,Fuel treatment systems

Food & Beverage Processing:Process water, Cleaning fluids, Production liquids

General Industrial Applications:Widely used in manufacturing plants ,machinery filtration systems, equipment protection, circulating fluid filtration

Specifications

Outer Diameter	2.5/2.63/2.75/3 inch
Height	09/10/20/30/40/47/56/72 inch
Core Material	Tinned Steel
Filter material	Polyester
O-ring/Seal/Gasket Material	Buna, EPR, Viton, Silicone, Teflon
End caps	Tinned Steel, Polyester
Temperature	Polyester 240ºF / 116ºC
Maximum Differential Pressure	20 psid / 1.378 bar
Filtration Accuracy	0.5, 1, 2,10, 20,25, 40, 70μm at 99.98% efficiency
Flow Direction	Outside to Inside

If you are interested in this filter, please contact us to get the price.

Features

Synthetic Pleated Filter Media: cartridges utilize high-quality synthetic filter media, including polypropylene and polyester options, providing excellent chemical compatibility and reliable particulate removal performance for various industrial liquid applications.

High Filtration Efficiency & Dirt Holding Capacity:the pleated media structure provides: increased filtration surface area, high dirt holding capacity , stable filtration efficiency, extended service life which helps maintain low pressure drop during operation.

Robust Bonded Construction: minimizes the risk of media movement, particle bypass, and performance degradation under demanding industrial conditions.

Wide Chemical Compatibility: Available synthetic media materials provide compatibility with a wide range of industrial fluids, including:Water-based fluids ,Hydraulic oils ,Lubricants ,Chemicals ,Solvents ,Process liquids

Multiple Micron Ratings Available: available in various filtration ratings (0.5,1,5,10,20,25,40,70μm ）Reliable Industrial Performance:Designed for Low pressure drop , high flow capability ,long operating life ,consistent filtration performance .

Outside-to-Inside Flow Design: Designed for outside-to-inside flow configuration, allowing contaminants to accumulate on the outer surface of the filter media while maintaining efficient filtration performance.

OEM Equivalent Replacement Capability: MeiTong manufactures replacement cartridges compatible with Jonell LiquiPleat™ E Series JPME, offering:Equivalent dimensions ,Compatible filtration performance ,Customized micron ratings ,OEM drawing and sample-based production

Model Number

Moder Number
JPME 336-05AB-D-M	JPME 336-05AV-S1-M	JPME 336-10A-WS	JPME 336-10AB-S1-M	JPME 336-10AV-S1-M
JPME 336-40AB-S1-M	JPME2520-05AB-D	JPME2520-05AP-D	JPME2520-10AB-D	JPME2530-05AB-D
JPME2530-10AB-D	JPME2530-10AB-S1	JPME2530-20AB-D	JPME2540	JPME2540-00AV-R3
JPME2540-05AB-O	JPME2540-10AB-D	JPME2540-20AB-DP	JPME2540-40AB-D	JPME2540-40AV-O
JPME2540-40CE-OP	JPME2640	JPME2740	JPME2740-10AB-D	JPME336-10A-WS
JPME336-25AB-S1-M	JPME5622-100-CE-HD	JPME612	JPME618	JPME618-25-D
JPME624	JPME629	JPME636	JPME636-10-O	JPME644
JPME736	JPME744	JPMP2530-05AB-S1
