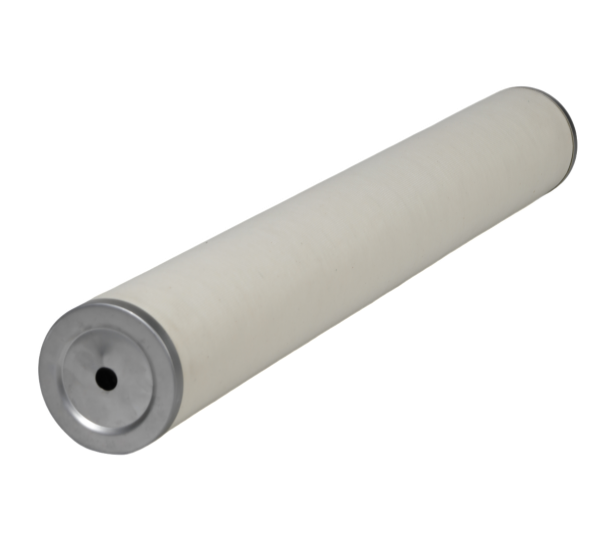

The JONELL GasPleat™ P Series (JPMP) is a premium line of all-synthetic pleated filter elements engineered for absolute particulate removal in aggressive gas streams. Constructed using high-performance polypropylene media, the JPMP series is specifically designed for environments where chemical resistance and hydrolysis stability are critical.

Unlike traditional cellulose or fiberglass elements, the JPMP series excels in applications involving acids, alkalis, and high moisture content, providing a robust barrier against solid contaminants without media degradation.

We warrants this part to meet or exceed OEM specifications, in Form, Fit, and Function,tested in accordance with ISO standards, with equivalent performance to original brands.

Application

Corrosive Gas Filtration: Ideal for handling gas streams containing acidic or alkaline components that would compromise standard glass or paper media.

Amine & Glycol Systems: Used to protect carbon beds and heat exchangers from particulate fouling in gas sweetening and dehydration units.

Refining & Petrochemical: Filtering process gases, catalyst fines, and feedstocks where high chemical purity is required.

Power Generation: Protecting Low-NOx burners and fuel gas systems from fine particulates and chemical carryover.

Chemical Manufacturing: Removal of solids from synthesis gas (SynGas), nitrogen, and other industrial process gases.

Water-Laden Gas Streams: Reliable performance in landfill gas (LFG) or biogas applications where moisture levels are high.

Superior Chemical Resistance: Polypropylene construction offers exceptional compatibility with acids, alkalis, and corrosive chemical vapors, making it the go-to choice for specialized gas processing.

Absolute Filtration Ratings: Available in various absolute-rated grades (typically ranging from 0.3 to 50 microns) to ensure consistent effluent quality and protection of high-precision downstream components.

Hydrolysis Stability: Naturally resistant to moisture-induced degradation, maintaining structural integrity and filtration efficiency in high-humidity or "wet" gas services.

High Dirt-Holding Capacity: The pleated synthetic matrix maximizes the effective filtration area, ensuring extended service life and reduced pressure drop over the life of the element.

Zero Fiber Migration: Thermal bonding of the synthetic fibers ensures a clean, stable media pack that will not release fibers into the process stream, even under fluctuating flow rates.

Customizable Hardware: Standard tinned steel or optional 304/316 Stainless Steel hardware and various gasket materials (Viton®, EPDM) allow for perfect integration into diverse vessel environments.
