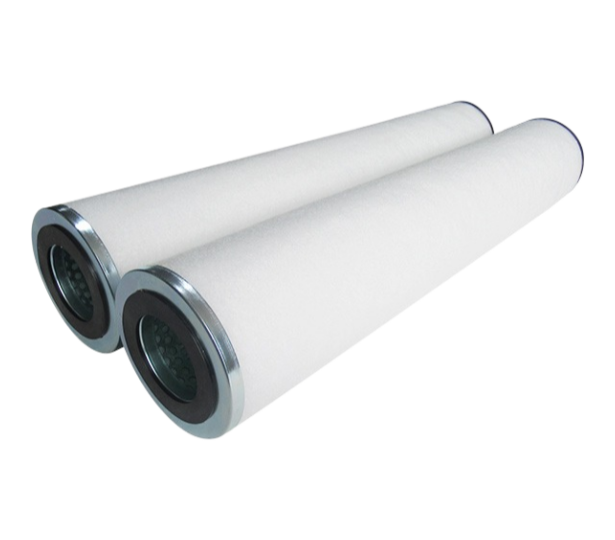

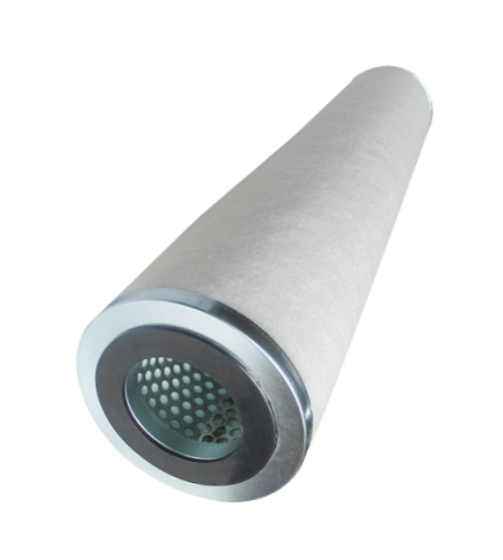

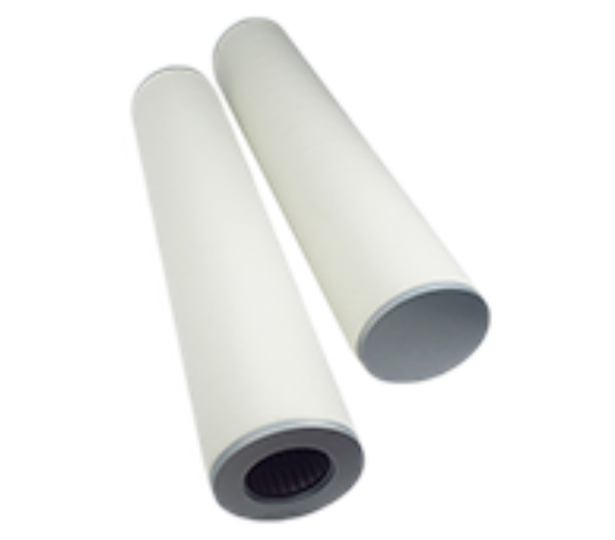

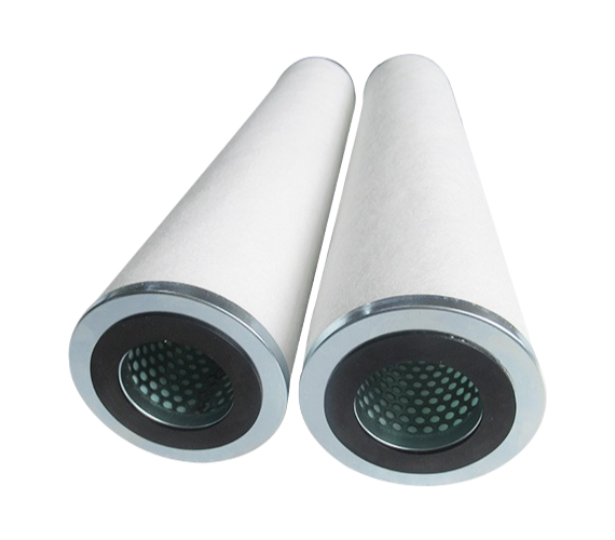

Replacement Coalescing Filter Cartridges for Jonell JRGC336

OD 3.5 /4.5/ 5.5 inch

Height 12 /24 /36/48 inch

End caps Tin Plated, Stainless, Nylon

Filter layer Polyester,Polypropylene

Filtration rate 0.3μm μm

Working temperature 240F

Skeleton Tin Plated, Stainless

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

The JONELL TRI-SHiELD™ Series (JRGC) coalescing filter cartridges are engineered for high-performance gas filtration in vertical coalescers. Utilizing patent-pending TRI-SHiELD media technology, this series is specifically designed to remove challenging contaminants in critical applications such as compressor discharge, contactor protection, and contactor discharge systems.

The advanced media structure combines tri-lobal and cylindrical fibers within a precisely engineered gradient depth matrix. This unique configuration significantly enhances coalescing efficiency, enabling superior removal of fine aerosols and low surface tension liquids, including amines, glycol, and lubricating oils.

With a textured, coarse-finish outer layer and customizable multi-layer media construction, the JRGC series delivers exceptional dirt-holding capacity, optimized drainage performance, and extended service life. Multiple surface treatment options allow flexibility to meet demanding process conditions.

Designed to protect critical equipment and minimize unplanned downtime, the TRI-SHiELD™ Series ensures reliable operation and reduced total cost of ownership in gas processing and petrochemical applications.

Application

Compressors, turbines, pumps, valves, regulators, meters, and burners;Pipeline dehydration, gas storage,Industrial gas purification, power generation,Small-scale gas filtration, residential use,Natural gas processing, pipeline filtration,Industrial gas purification, power generation,Petrochemical refining, gas distribution，Refineries & Petrochemical Plants，Dehydration Units (e.g., TEG)，Compressor/ Metering Stations

Specifications

Parameter	Specification
Hardware Material	Tin Plated, Stainless
O-ring/Seal/Gasket Material	Core: Tin Plated, Stainless Gasket: Buna, Viton
Outer Diameter	3.5 /4.5 /5.5inch
Height	12 /24 /36/48 inch
Filter material	Polyester,Polypropylene
End caps	Tin Plated, Stainless, Nylon
Temperature	240F
Maximum Differential Pressure	12 - 15 PSID
Filtration Accuracy	0.3μm

If you are interested in this filter, please contact us to get the price.

Features

Optimized for vertical coalescers in gas processing systems

High efficiency removal of fine aerosols and low surface tension liquids

Advanced gradient depth structure for superior dirt loading capacity

Customizable multi-layer media design for challenging applications

Textured outer surface improves filtration and drainage efficiency

Extends equipment life and reduces maintenance frequency

Improves system reliability and lowers total operating costs

Lower total cost of ownership through competitive pricing per cartridge.

100% performance-tested prior to shipment, ensuring reliability.

Model Number

Moder Number
JRGC312	JRGC324	JRGC336	JRGC348	JRGC372
JRGC512	JRGC524	JRGC536	JRGC548	JRGC572
JRGC 30226-ETV-AF	JRGC 336P-ETB-CE-AF	JRGC 336-ETB-CE-AF	JRGC 336-ESV-CE-FF	JRGC 336P-ETB-CE-FF
JRGC336P-ETV-CE-AF	JRGC36343-ETV-AF	JRGC 336-ESV-CE-FF	JRGC312P-ETB-CE-FF	JRGC 36343-ETV-AF
JRGC 336P-ETV-CE-AF	JRGC336P-ETB-CE-UF	JRGC336P-ETV-CE-FF	JRGC324P-ETB-CE-FF	JRGC312P-ETB-CE-BF
JRGC536P-ETB-CE-FF	JRGC536P-ETV-CE-FF	JRGC548P-ETB-CE-UF	JRGC572P-ETB-CE-FF	JRGC336P-ETB-FF
JRGC536P-ETB-UF	JRGC312P-FTB	JRGC324P-FTB	JRGC336P-FTB	JRGC524P-FTB
JRGC536P-FTB	JRGC548P-FTB	JRGC572P-FTB	JRGC312P-ESV	JRGC324P-ESV
JRGC336P-ESV	JRGC524P-ESV	JRGC536P-ESV	JRGC548P-ESV	JRGC572P-ESV
JRGC312P-ETV	JRGC324P-ETV	JRGC336P-ETV	JRGC524P-ETV	JRGC536P-ETV
JRGC548P-ETV	JRGC572P-ETV	JRGC312P-FSV	JRGC324P-FSV	JRGC336P-FSV
JRGC524P-FSV	JRGC536P-FSV	JRGC548P-FSV	JRGC572P-FSV
