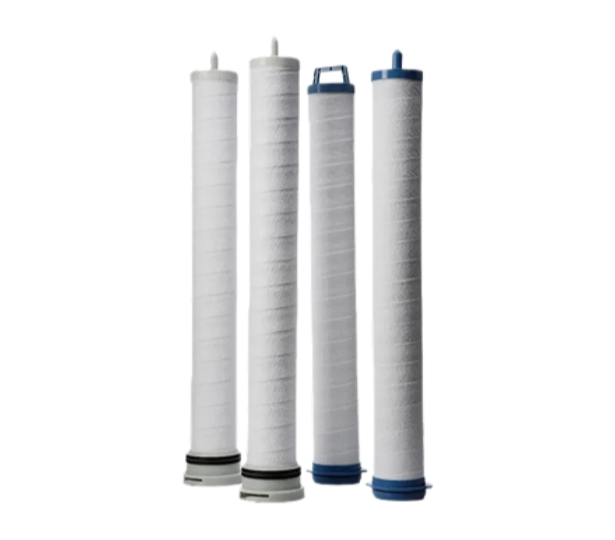

Replacement Natural Gas Coalescing Filter Cartridge for JGCC JGCP Series

OD 4.50 inch

Height 73, 82, 94 inch

End caps Nylon,Closed end with bayonet or handle

Filter layer Polyester, Polypropylene

Filtration rate 0.3μm μm

Working temperature 240 degree F for Polyester ;180-degree F for Polypropylene

Skeleton Coreless, Tin Plated, Stainless

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance pool filter

Description

The JGCC JGCP Series TRI-SHIELD™ gas coalescing filter cartridge is an advanced two-stage filtration solution designed for natural gas and process gas applications. It delivers superior contaminant removal, extended service life, and reduced operating costs.This innovative cartridge integrates a primary filtration stage and a secondary coalescing stage into a single configurable system. The first stage removes solid particles, while the second stage efficiently coalesces fine liquid aerosols such as oil, glycol, and amines.

Compared to conventional one-piece cartridges, the Twist-LOK™ design allows independent replacement of each stage, minimizing downtime and significantly lowering maintenance costs.The JGCP JGCC Series ensure reliable protection of downstream equipment in demanding oil & gas environments.

Specifications

Parameter	Specification
Flow Direction	Stage 1: Outside to Inside Stage 2: Inside to Outside
Hardware Material	Coreless, Tin Plated, Stainless
O-ring/Seal/Gasket Material	Gasket: Buna, Viton, TES O-ring
Outer Diameter	4.50”
Height	73”, 82”, 94”
Filter material	Polyester, Polypropylene
End caps	Nylon,Closed end with bayonet or handle
Temperature	240 degree F for Polyester 180-degree F for Polypropylene
Maximum Differential Pressure	12 - 15 PSID
Filtration Accuracy	0.3μm

If you are interested in this filter, please contact us to get the price.

Features

Advanced TRI-SHIELD™ multi-layer gradient depth media

Two-stage filtration: solid removal + liquid coalescing

Twist-LOK™ modular design for flexible replacement

Lower pressure drop and longer service life

Designed for high liquid and solid loading conditions

Model Number

JGCCN 73-ETB	JGCPN 73-ETB	JGCCN 73H-ETB	JGCPN 73H-ETB	JGCCN 73-ETB-TF
JGCCN 73-ETB-SF	JGCCN 73-ETB-FF	JGCCN 73-FTB	JGCPN 73-FTB	JGCCN 73H-FTB
JGCPN 73H-FTB	JGCCN 73-ESV	JGCPN 73-ESV	JGCCN 73H-ESV	JGCPN 73H-ESV
JGCCN 73-ETV	JGCPN 73-ETV	JGCCN 73H-ETV	JGCPN 73H-ETV	JGCCN 73-FSV
JGCPN 73-FSV	JGCCN 73H-FSV	JGCPN 73H-FSV	JGCCN 84-ETB	JGCPN 84-ETB
JGCCN 84H-ETB	JGCPN 84H-ETB	JGCCN 84-ETB-TF	JGCCN 84-ETB-SF	JGCCN 84-ETB-FF
JGCCN 94-ETB	JGCPN 94-ETB	JGCCN 94H-ETB	JGCPN 94H-ETB	JGCCN 94-ETB-TF
JGCCN 94-ETB-SF	JGCCN 94-ETB-FF

Didn't find your industry solution?

Consult our technical experts immediately for customized filtration solutions.

wenty-two years of expertise in reliable, automated industrial filtration, supported globally across 50+ countries.

Meitong Filtration was established in 2003 and is located in Bazhou City, Hebei Province, China. We are a professional manufacturer dedicated to the development and production of industrial Filtration and purification solutions.
