Coalescing Filter: Working Principle & Applications

In industrial processes such as oil & gas, petrochemical production, and compressed air systems, fluid streams often contain contaminants like water, oil aerosols, and solid particles. These impurities can reduce product quality, damage equipment, and increase maintenance costs.

A coalescing filter is a highly efficient solution designed to remove these contaminants and ensure clean, dry, and reliable process streams.

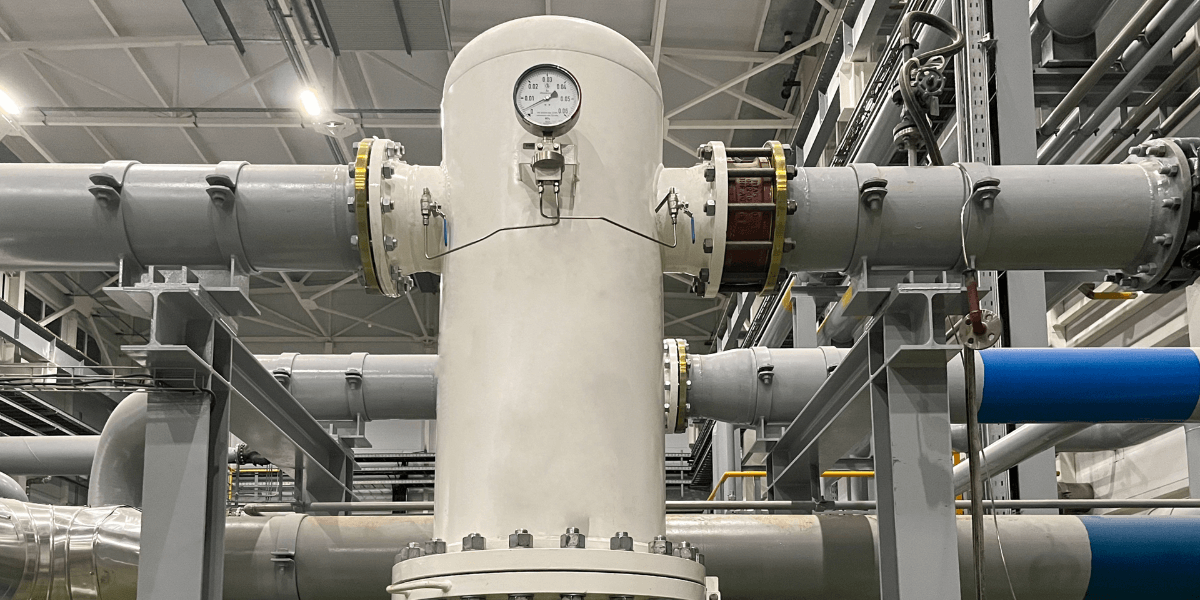

What Is a Coalescing Filter?

A coalescing filter is a specialized filtration device used to separate liquid aerosols and fine particles from gas or liquid streams based on

the principle of coalescence—the process by which small droplets merge into larger ones.

It is widely used in industries such as:

•  Natural gas processing

• Oil & gas refining

• Chemical processing

• Compressed air systems

• Coalescing filters can effectively handle:

• Gas-liquid separation (e.g., gas & water)

• Liquid-liquid separation (e.g., oil & water)

• Removal of fine particulate contaminants

How Does a Coalescing Filter Work?

The operation of a coalescing filter typically involves three main stages:

1. Filtration (Capture Stage)

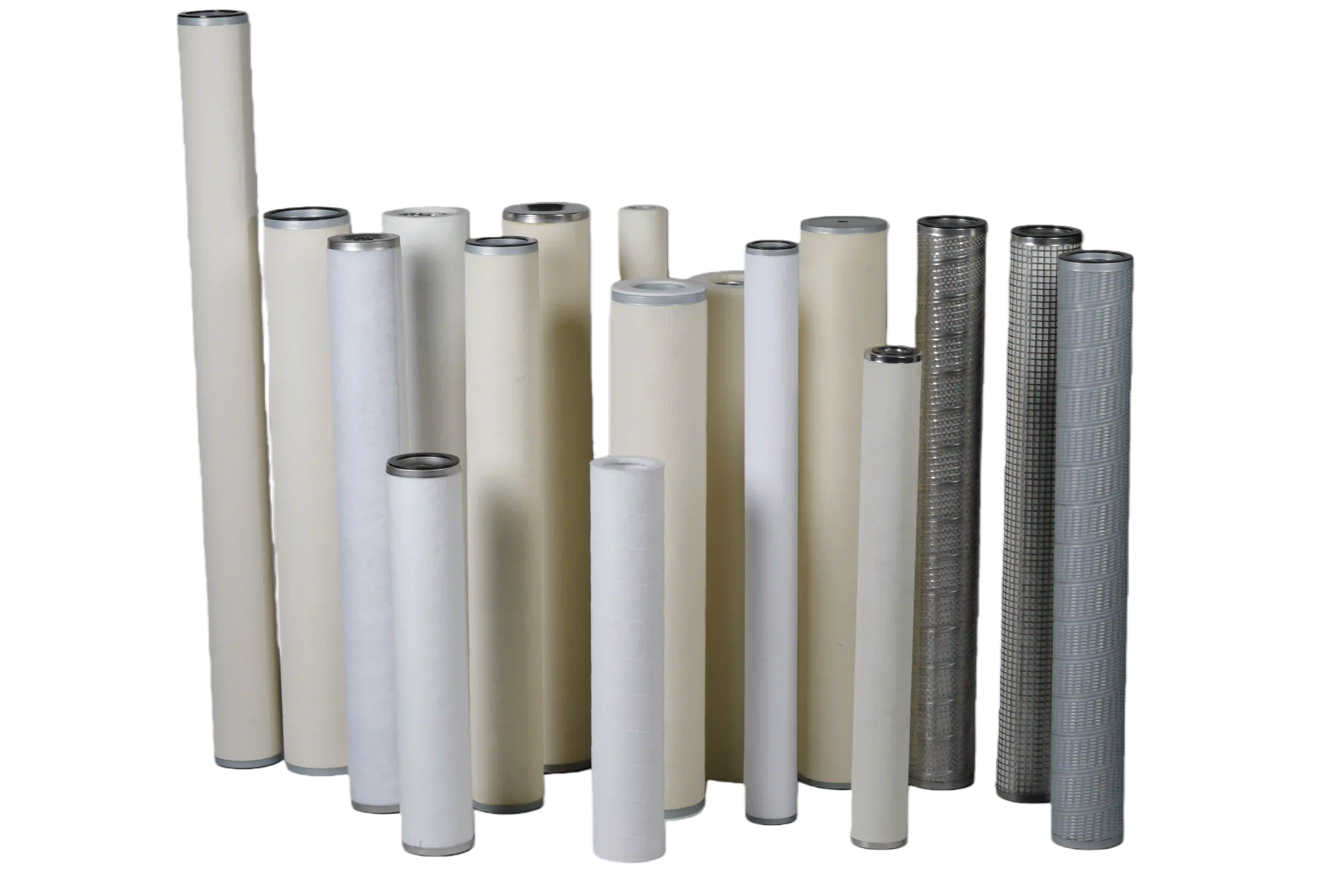

 Contaminated gas or liquid enters the filter housing and passes through a high-efficiency filter element made of fine fibers (such as borosilicate glass). Solid particles are trapped. Liquid aerosols (oil/water mist) are captured within the media.

 This process relies on mechanisms such as interception, diffusion, and inertial impaction.

2. Coalescence (Merging Stage)

As the fluid flows through the filter media.Tiny droplets collide with fibers and with each other.Small droplets merge into larger droplets.

This is the core function of a coalescer—turning difficult-to-remove micro-droplets into larger, separable drops.

3. Separation & Drainage Stage

Once droplets grow large enough:

Gravity forces them to fall out of the flow stream. Liquid accumulates at the bottom of the filter housing.Collected contaminants are discharged through a drain.Clean, dry gas or fluid then exits through the outlet.

Types of Coalescing Filters

Coalescing systems can be classified into two main types:Mechanical Coalescers ,Electrostatic Coalescers

Mechanical Coalescers

Use filter media and structural barriers

Common in oil, gas, and industrial applications

No external energy required

Electrostatic Coalescers

Use electric fields to accelerate droplet merging

Suitable for separating stable emulsions

Often used in offshore oil & gas processing

Key Benefits of Coalescing Filters

1. Efficient Removal of Oil, Water, and Particles

Coalescing filters can remove submicron aerosols and contaminants, ensuring high purity levels in gas and liquid streams.

2. Protection of Equipment

 By eliminating contaminants, coalescing filters help protect:Compressors, Turbines, Valves,Pipelines.This reduces wear, corrosion, and unexpected failures.

3. Improved System Efficiency

 Clean process streams allow equipment to operate at optimal performance, improving overall system efficiency and productivity.

4. Reduced Maintenance Costs

 Less contamination means; Lower downtime; Fewer replacements; Reduced operational costs

5. Enhanced Product Quality

 In industries like petrochemical and natural gas processing, removing impurities ensures compliance with strict quality standards and prevents catalyst poisoning.

Typical Applications

• Natural gas filtration – removing water and condensates

• Compressed air systems – eliminating oil mist and moisture

• Fuel filtration – ensuring clean fuel supply

• Petrochemical processing – separating hydrocarbons and water

• Compressor systems – recovering lubricating oil and protecting downstream equipment

Conclusion

A coalescing filter is an essential component in modern industrial filtration systems. By combining fine particle filtration with liquid dropletcoalescence and separation, it provides an efficient and reliable solution for removing contaminants from gas and liquid streams.

Whether used in natural gas processing, compressed air systems, or petrochemical applications, coalescing filters play a critical role in protecting equipment, improving efficiency, and ensuring product quality.
